Coil Rod Straightener & Cutter Machine

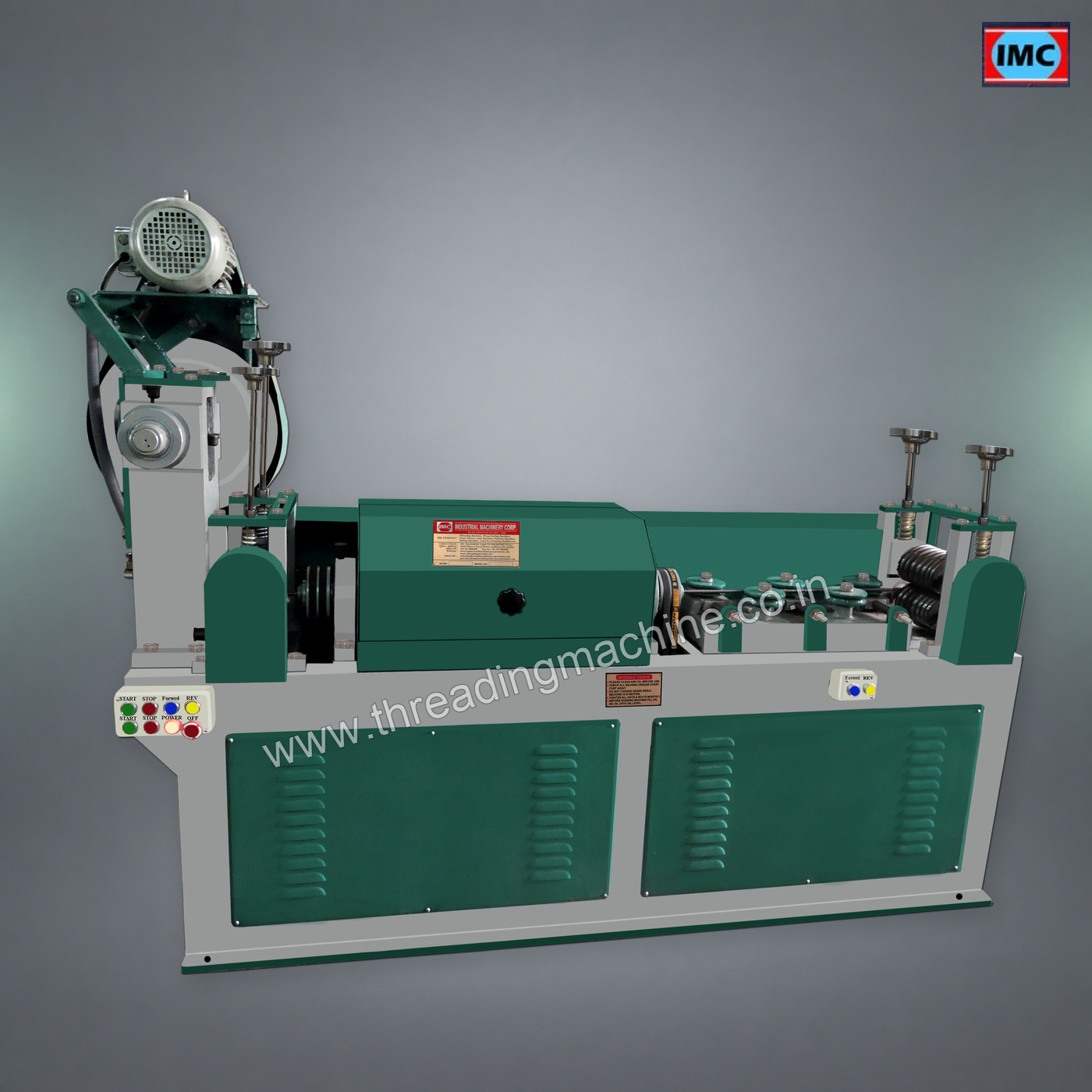

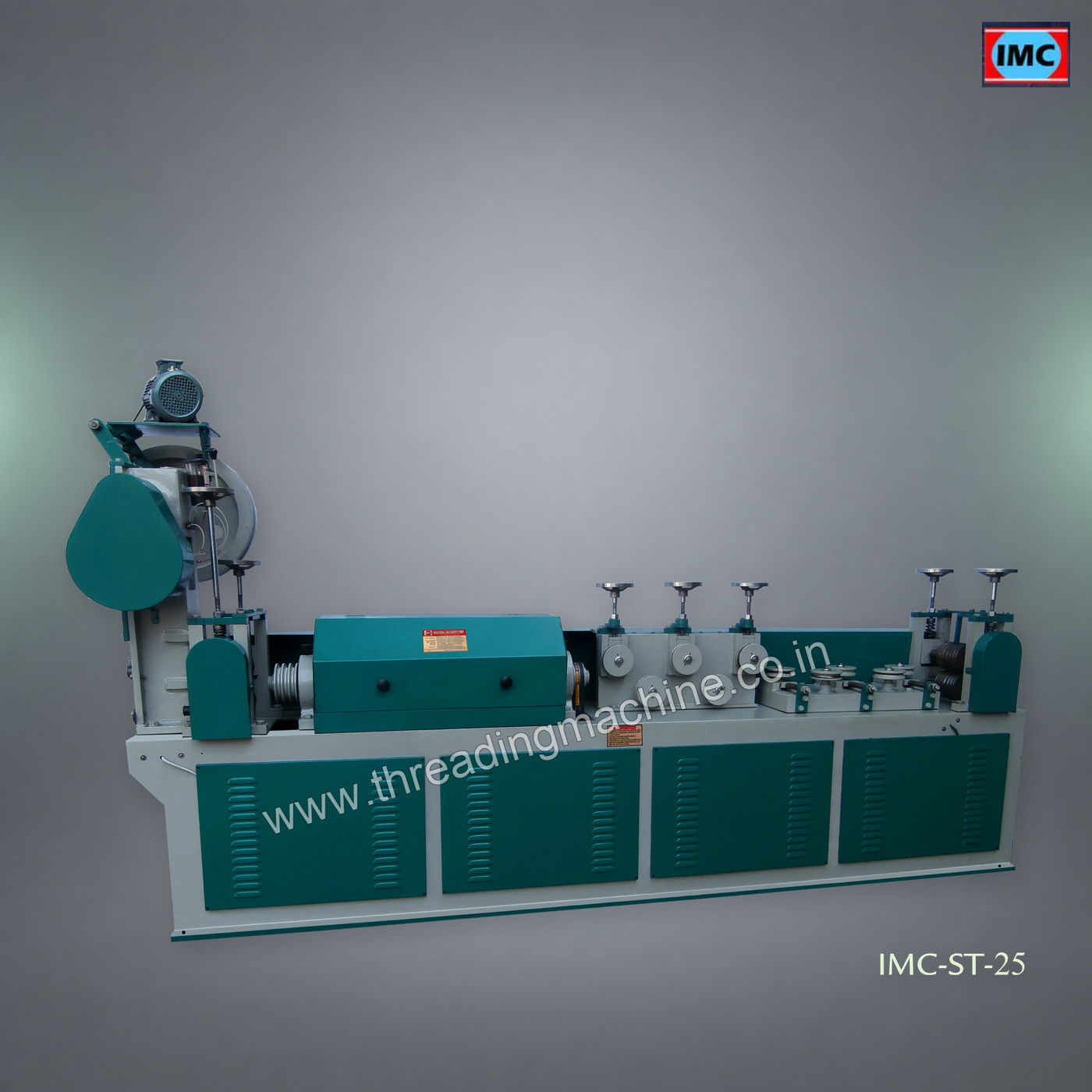

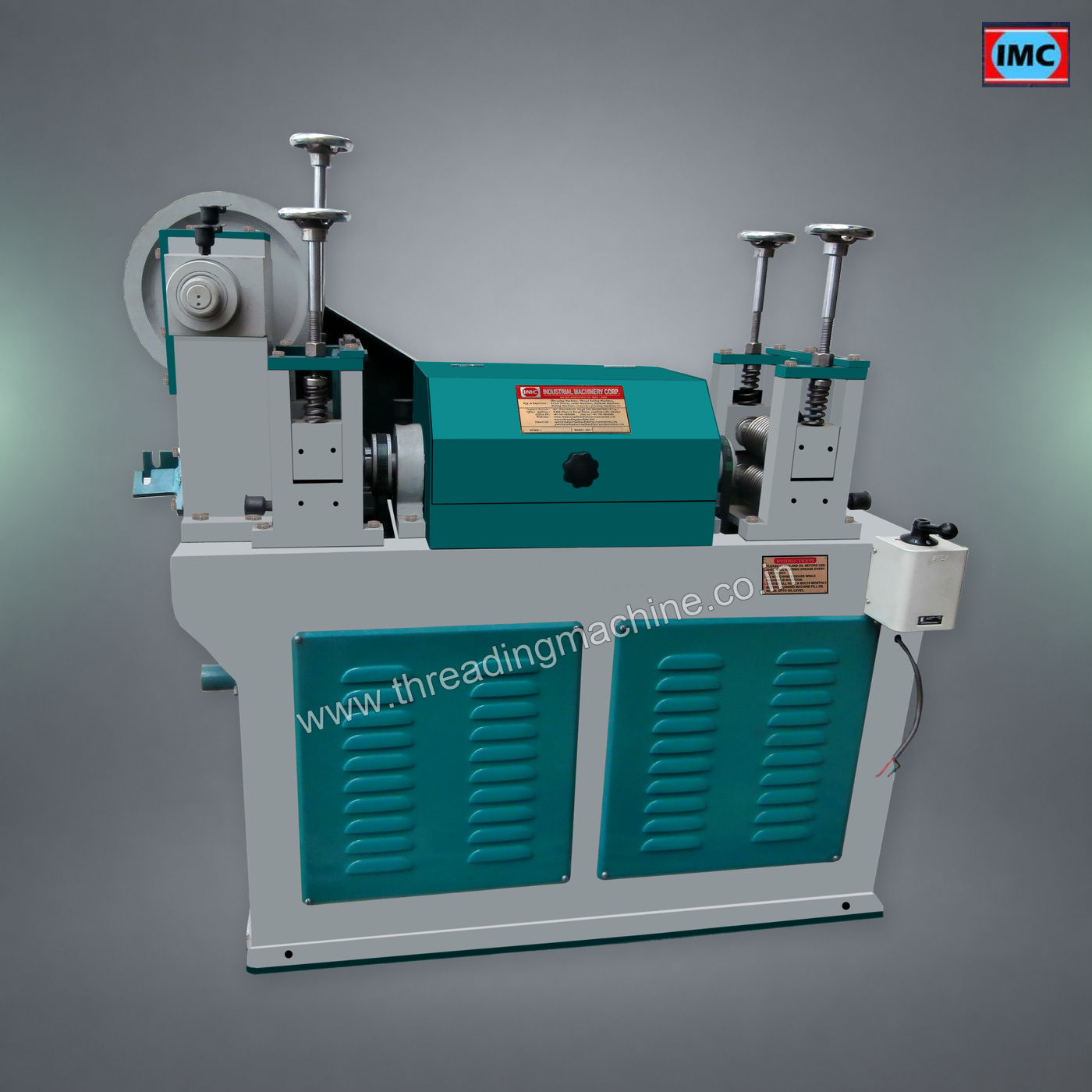

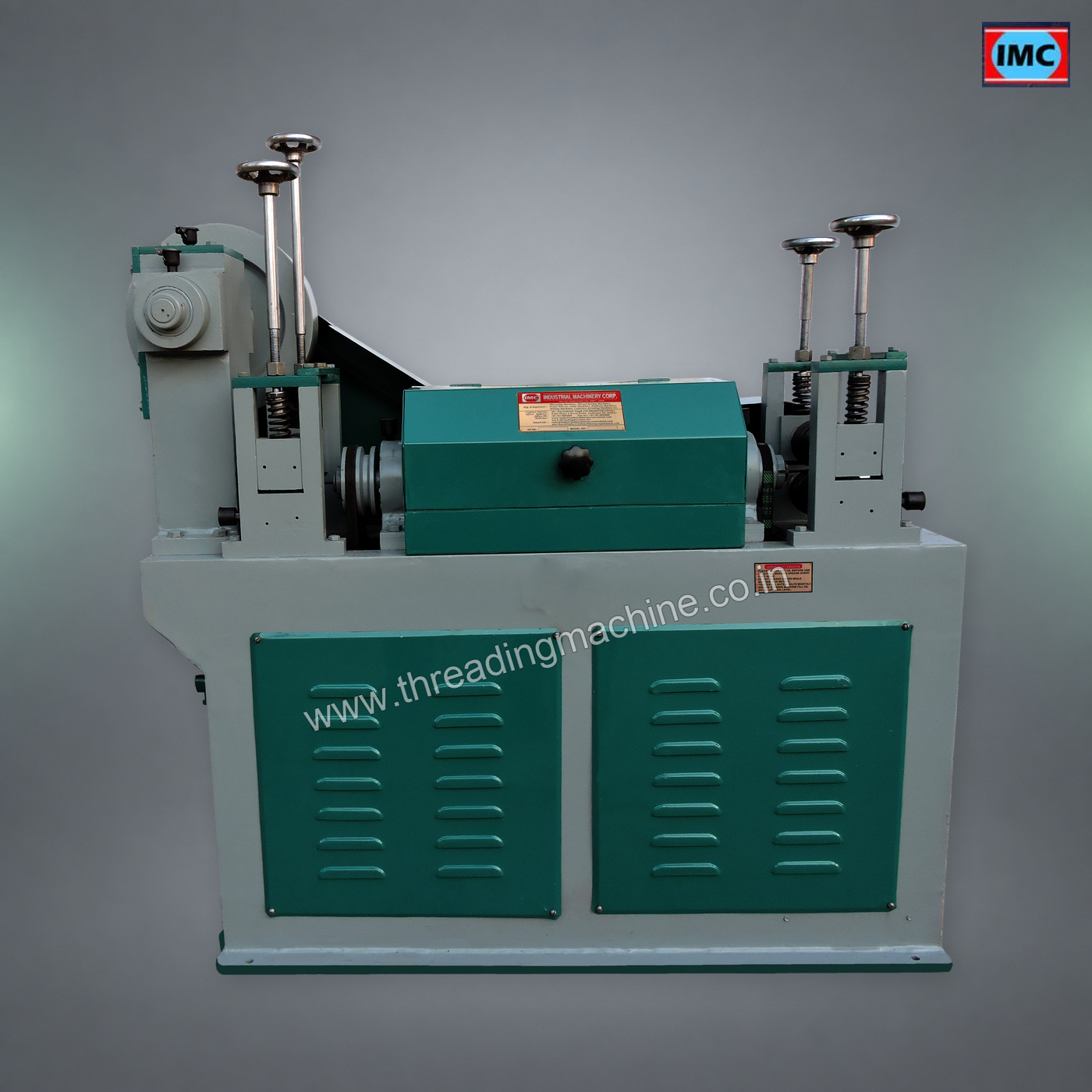

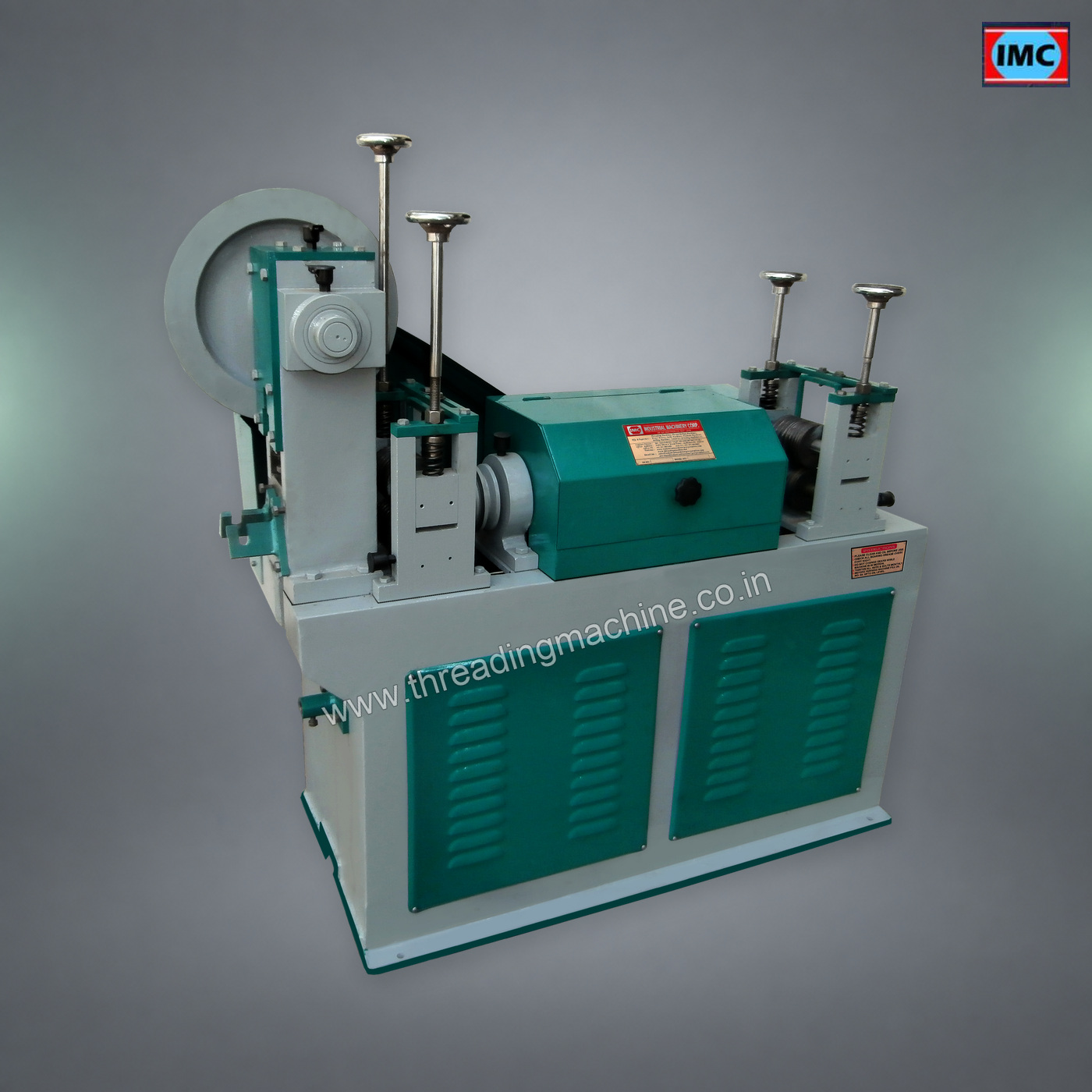

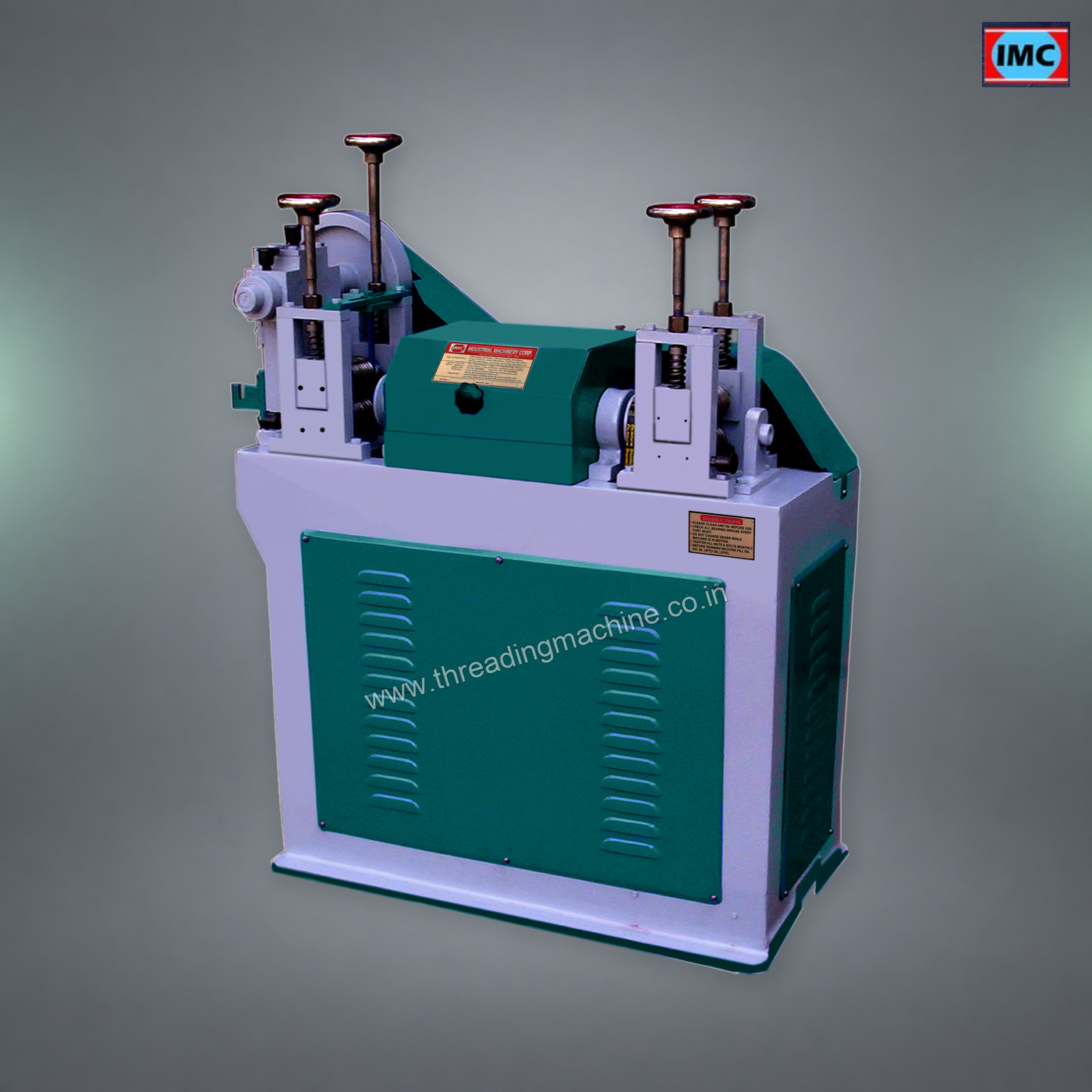

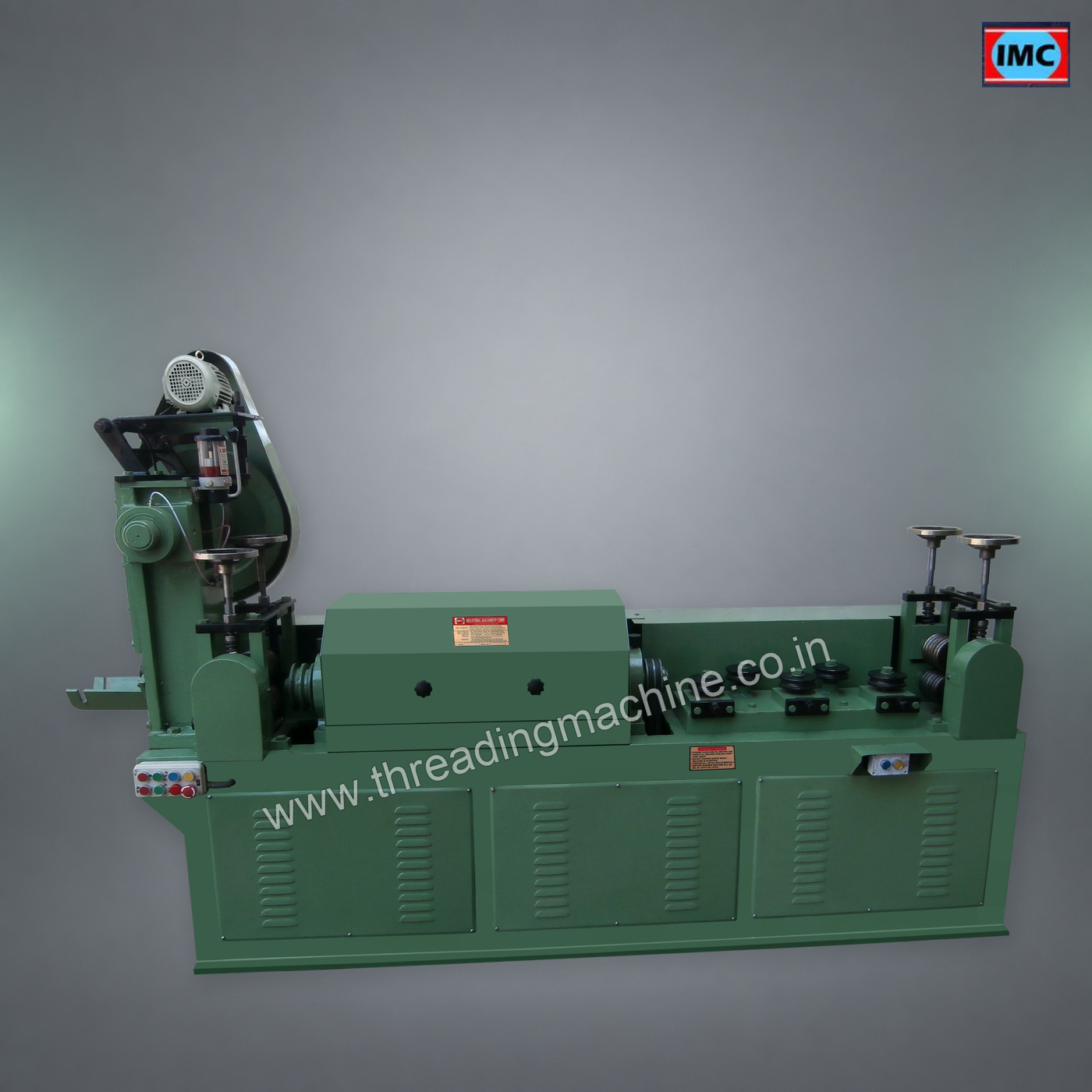

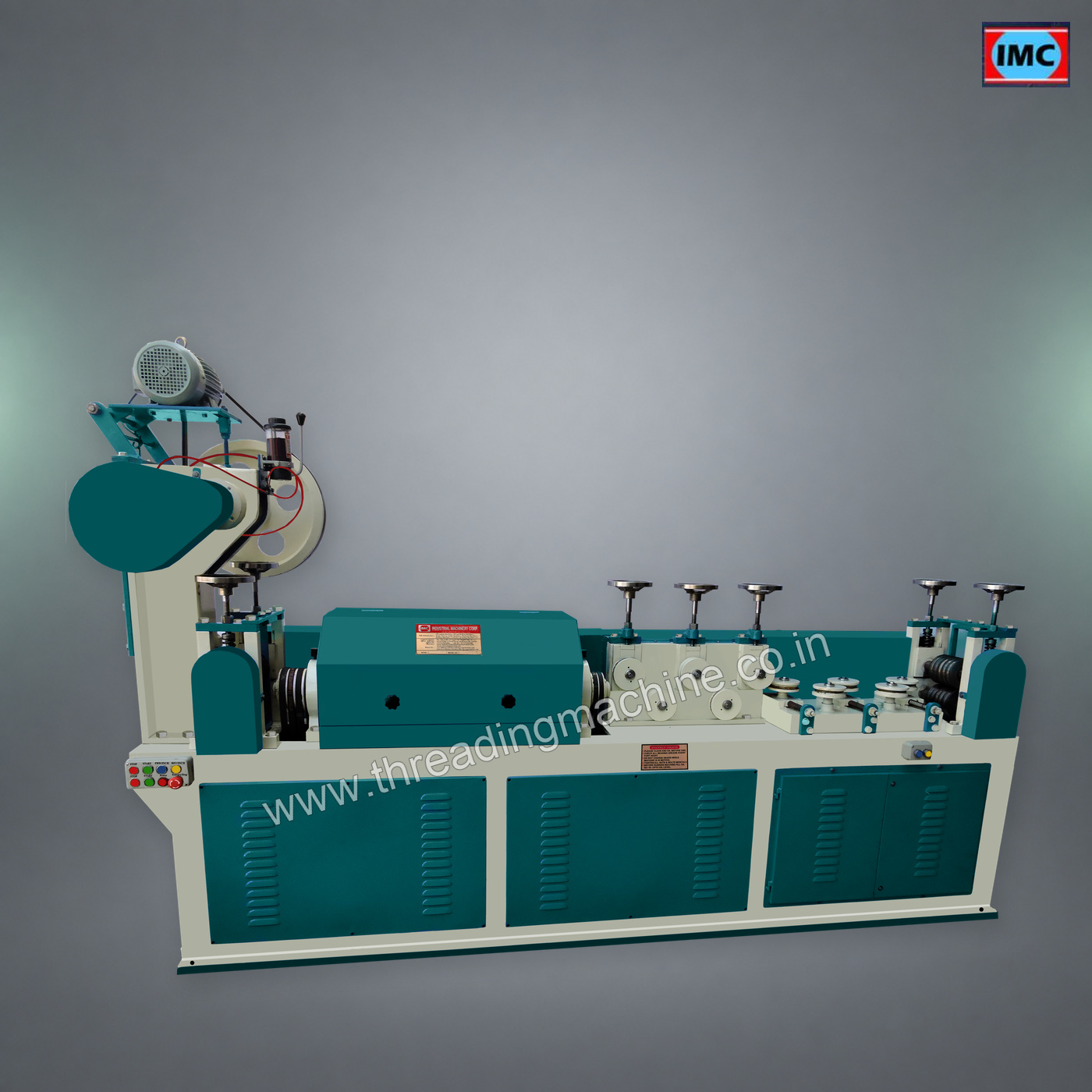

Wire Straightening And Cutting Machine by Industrial Machinery Corporation

Wire Straightening And Cutting Machine by Industrial Machinery Corporation thumbnail

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 1

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 2

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 3

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 4

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 5

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 6

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 7

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 8

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 9

Review Coil Rod Straightener & Cutter Machine for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to straighten suitable wire, coil rod or coil bar and cut it to specified lengths against your component requirements. Send a drawing or sample and state material grade, stock diameter, coil condition, cut length and straightness requirement. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address coil handling, straightening settings, feeding and the cutting arrangement. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Coil rod and coil bar compatibility must be assessed against the actual material and section rather than their names alone. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for cut length, straightness and the surface condition of the finished pieces. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

Material grade
Stock diameter
Coil condition
Cut length and straightness requirement

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Min And Max Diameter of the Job

Maximum Length Required

Quantity Required

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

IMC-ST-10 Automatic Wire Cutting and Straightening System

Wire | Rod straightening and cutting machine

IMC Wire Straightening and Cutting Machine 16MM 6M Long Manufacturer, Exporter Punjab, India

Wire Straightening and Cutting Machine 16MM | Industrial Production

Wire Straightening and Cutting Machine 16MM 6M Long Length Manufacturer India

Wire Rod Straightening and Cutting Machine | High-Precision Solutions by IMC

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

The main characteristics of this Wire Straightening Cutting Machine are a modern design, low maintenance, and high throughput. These machines are available in various capacities that depend upon the thickness, weight, speed, and length of the wire.

In addition to this, it is more effective, efficient and easy to use for longer life. We always used the latest and advance technology for the manufacture of these cutting machines. With the help of Wire Straightening and Cutting Machine 's, we cut a different variety of materials such as Mild steel, EN8, SS 316, SS 304, SS 202, Brass, Copper, Rebar, Aluminum and Spring steels. These machines are powerful which is fixed with straightening device as well as with cutting device that makes a perfect machine for the correct operation. Mostly these machines are used in automobile industries, Electrical industries, Metal processing industries and many other types of metal fabrication work. These machines are manufactured in our Ludhiana Unit under very strict quality control. Moreover, we always fulfill the requirements of the customers as providing the high-quality machinery within the budget also.

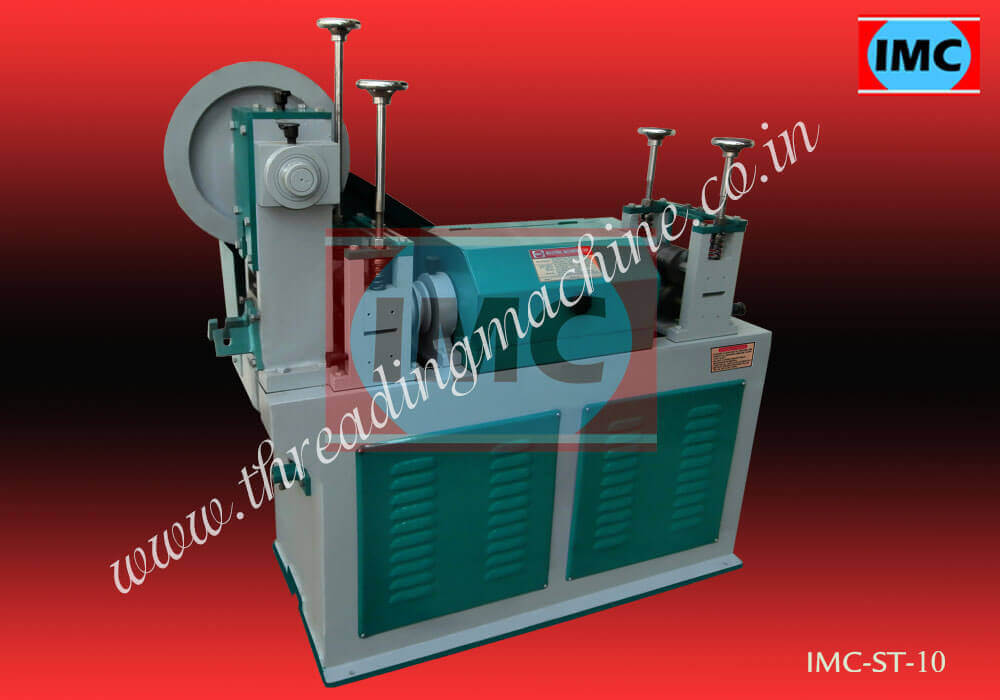

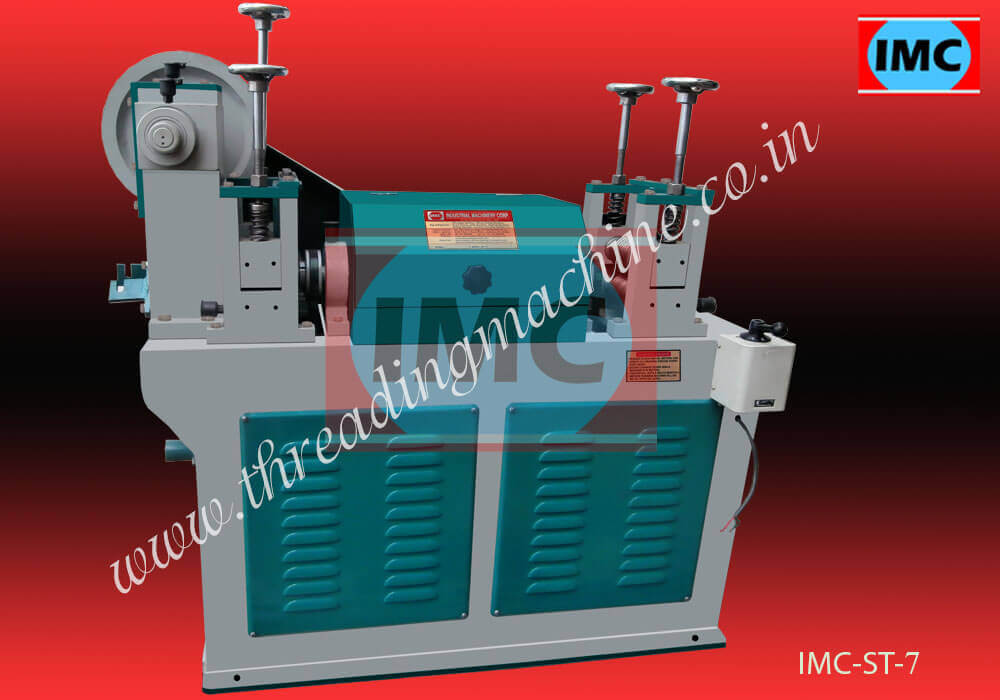

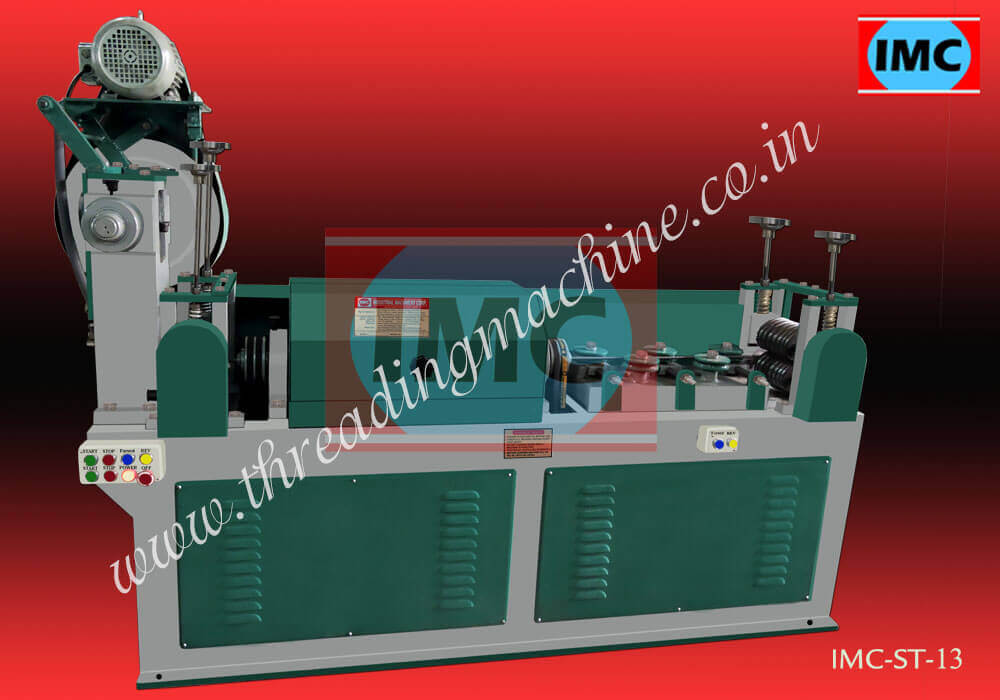

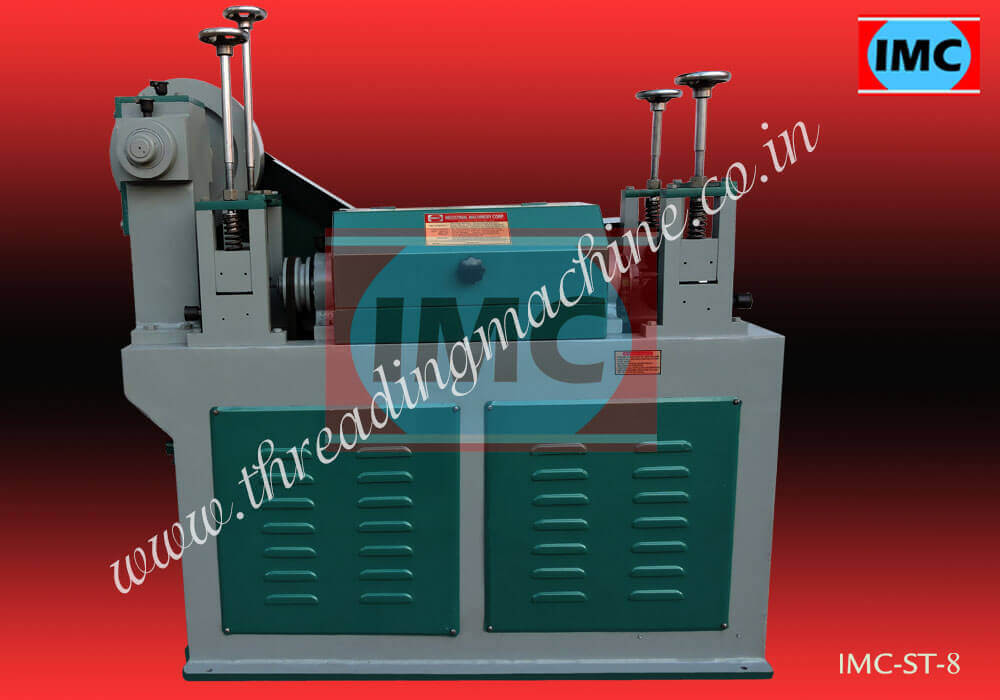

Specifications :	IMC-ST-7	IMC-ST-8	IMC-ST-10	IMC-ST-12	IMC-ST-13
In Thickness of wire	2 to 7mm	3 to 8mm	4 to 10mm	4 to 12mm	3 to 13mm
In Length of wire to be cut automatically	As per Requirement	As per Requirement	As per Requirement	As per Requirement	As per Requirement
Feeding capacity per min.	70' feet	70' feet	70' feet	60' feet	60' feet
Power of motor H.P.	3 H.P.	5 H.P.	5 H.P.	10 H.P.	10 H.P.
Required R.P.M.	1440	1440	1440	1440	1440
Approx. Weight in Kg.	410	460	550	1000	1200
Floor space required	42"x18"	48"x20"	52"x20"	60"x22"	82"x22"

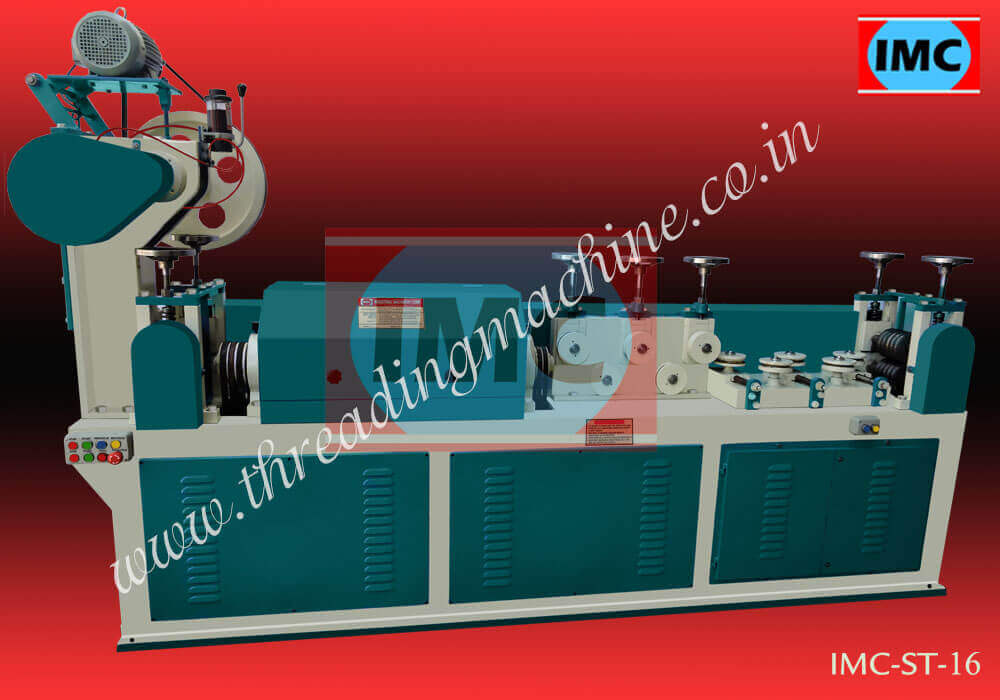

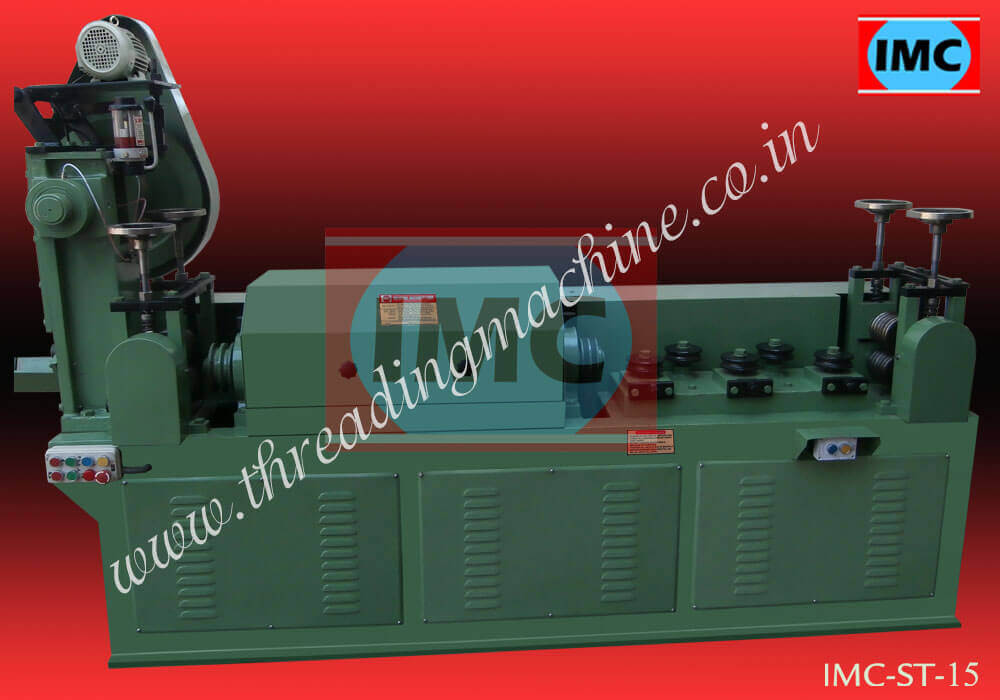

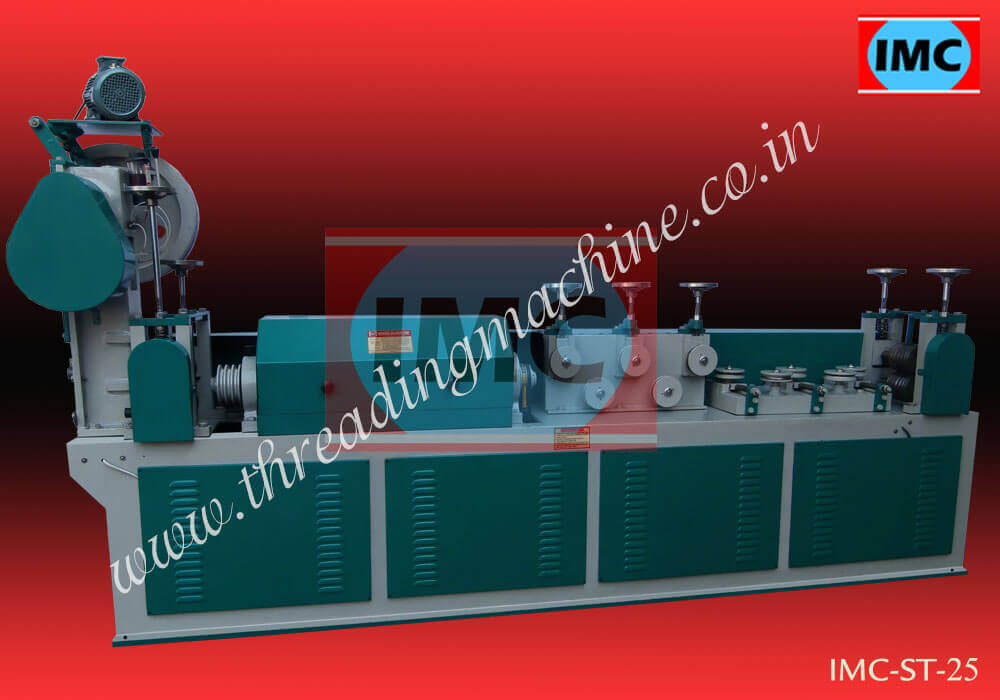

Specifications :	IMC-ST-14	IMC-ST-15	IMC-ST-16	IMC-ST-20	IMC-ST-25
In Thickness of wire	5 to 14mm	6 to 15mm	8 to 16mm	10 to 20mm	15 to 25mm
In Length of wire to be cut automatically	As per Requirement	As per Requirement	As per Requirement	As per Requirement	As per Requirement
Feeding capacity per min.	60' feet	60' feet	60' feet	60' feet	40' feet
Power of motor H.P.	10 H.P.	15 H.P.	15 H.P.	25 H.P.	30 H.P.
Required R.P.M.	1440	1440	1440	1440	1440
Approx. Weight in Kg.	1300	1500	2500	3000	3500
Floor space required	91"x22"	105"x24"	125"x24"	150"x27"	180"x36"

Frequently Asked Questions About Wire Straightening And Cutting Machine

Why discuss wire grade, coil condition and cut length before ordering wire straightening and cutting machine?

Those details define the application that the equipment must accommodate. Material behaviour and coil set influence straightening. Give the wire diameter and grade along with the finished length and straightness requirement.

How do I build an enquiry for the wire straightening and cutting machine shown here?

Select the listed machine options, add the required quantity and attach your application notes. State wire grade, coil condition and cut length, together with the intended output and delivery location, so the quotation addresses your actual production task.

What does the wire straightening and cutting machine do within a production setup?

Wire is straightened and cut into lengths suitable for subsequent processing. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
