H Type Blanking Power Press Machine

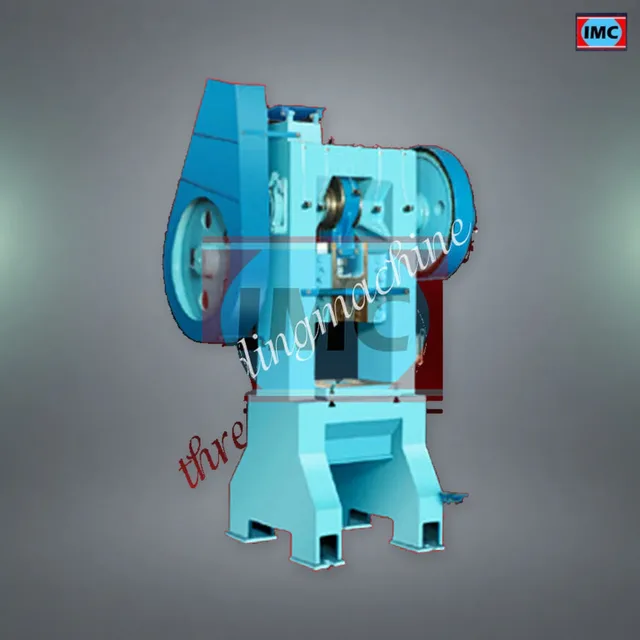

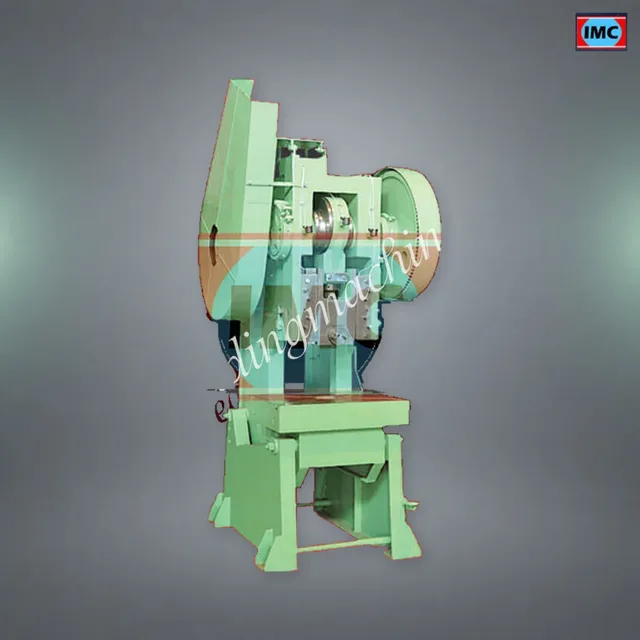

H Type Power Press Machine by Industrial Machinery Corporation

H Type Power Press Machine by Industrial Machinery Corporation thumbnail

Review H Type Blanking Power Press Machine for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to perform specified sheet-metal punching, blanking or forming with an H-frame power press and matched dies against your component requirements. Send a drawing or sample and state material and thickness, component drawing, required operation and die dimensions. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address press tonnage, stroke, bed and shut height together with the proposed die. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. The installed die determines the operation; press selection needs the tooling requirements as well as the nominal tonnage. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for component dimensions, punched or blanked edges and the result of the forming operation. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

Material and thickness
Component drawing
Required operation and die dimensions

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Maximum Thickness of Job

Maximum Force Required In Tons

Model No You Are Interested

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Avail from us H Type Power Press Machine at reasonable prices. We are counted among the topmost H Type Power Press Machine Manufacturers In India. The H Type Power Press Machines we offer are known for their compact design, robust construction, efficient performance, and long working life. We offer H Type Power Press Machine at market leading prices. Highlights

Compact design
Robust construction
Efficient performance
Long working life

» H Type Power Press Machine Specifications

Model	10 Ton	20 Ton	30 Ton	50 Ton	75 Ton	100 Ton	150 Ton	200 Ton	250 Ton	300 Ton	400 Ton	500 Ton
Bed Size	300 X 350	350 X 400	400 X 450	450 X 500	550 X 600	600 X 650	650 X 700	750 X 800	800 X 850	900 X 950	1000 X 1050	1100 X 1100
Bed To Ram Bottom	250	250	300	375	400	450	465	500	550	600	650	700
Stroke Length	55	60	80	95	110	125	150	160	175	200	200	200
Gear Dia	450	525	600	650	750	850	1000	1050	1200	1200	1200	1250
Crank Shaft Dia	70	80	90	110	125	150	175	200	225	250	300	300
Fly Wheel Dia	525	650	700	800	900	1000	1100	1200	1300	1375	1500	1500
Hole in Ram Clamping Die	25	28	32	40	45	50	55	60	70	80	100	110
No of Stroke per minute	55	55	50	50	45	40	40	35	30	25	20	20
Power Required in HP	2	2	3	5	7.5	10	15	20	25	25	30	35
Motor	1440	1440	1440	1440	1440	1440	1440	1440	1440	1440	1440	1440

Rolling Key

Is fitted in the two parts of EN-34 alloy steel duty tempered and property ground and give a perfect service. All are being taken that the key may not break and is suitable to stand the jerks

Alignment

Highest degree of precision maintained during the fitting of ram and it's base is checked very property on 90 angel with the dail indicator. Horizontally & Perpendicularly

Body

The press bodies are manufactured out of the close grain casting and steel fabricated as well

Frequently Asked Questions About H Type Power Press Machine

Why discuss tool height, bed space and required pressing force before ordering h type power press machine?

Those details define the application that the equipment must accommodate. No. The tool envelope, stroke, access and workpiece support must also fit the operation. Include the tooling layout in the enquiry.

How do I build an enquiry for the h type power press machine shown here?

Select the listed machine options, add the required quantity and attach your application notes. State tool height, bed space and required pressing force, together with the intended output and delivery location, so the quotation addresses your actual production task.

What does the h type power press machine do within a production setup?

The H-frame arrangement supports pressing work with tooling selected for the intended component. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
