Double Side Ledger Welding Machine

Horizontal Ledger Welding Machine by Industrial Machinery Corporation

Horizontal Ledger Welding Machine by Industrial Machinery Corporation thumbnail

Review Double Side Ledger Welding Machine for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to weld ledger blades to the specified ends of scaffolding pipe using matched fixtures against your component requirements. Send a drawing or sample and state pipe dimensions, ledger length, blade geometry and required end positions. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address blade locating fixtures, pipe holding and the supplied single- or double-end configuration. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Provide both end details and confirm the actual supported length range before accepting a model for the ledger job. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for blade orientation, overall ledger length and the welds specified on the drawing. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

Pipe dimensions
Ledger length
Blade geometry and required end positions

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Maximum Length Required

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

Scaffolding Prop Nut Cup Handle Welding Machine

Scaffolding Prop Nut Cup Handle Welding Machine Manufacturer & Exporter

Scaffolding Prop Nut Cup Handle Welding Machine - IMC

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Industrial Machinery Corporation got incorporated in the year 2011 in Ludhiana, Punjab, India. A decade-long business journey has helped us to earn a reputable position in the market and we are a leading name in the field of manufacturing, exporting and supplying the wide gamut of products which include Welding Machines, MIG Welding Machine, Horizontal Ledger Welding Machine, Cup lock Welding machine and many more.

With its manufacturing unit situated in Ludhiana, we have over seven years of involvement in making best quality Horizontal Ledger Welding Machines. We have been serving everyone of our customers with best of Welding Machines and not just this; we have been giving excellent after deals benefit, in the event that, any of our machines face any technical issue which is extremely rare.

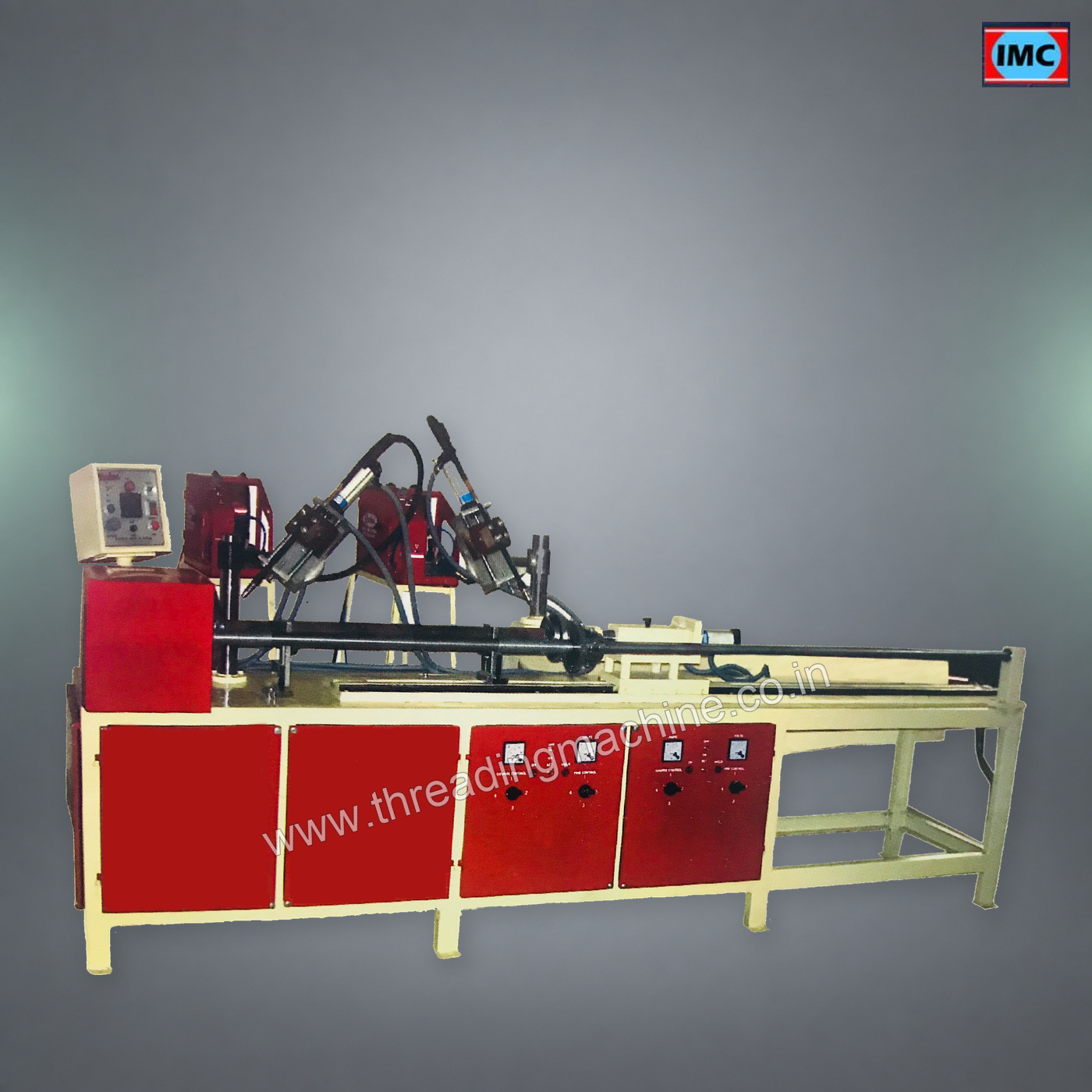

Horizontal ledger welding machine designed to weld ledger blades together at the same time, machine hold and weld the blades proportional to each other. This unit is pneumatically operated for clamping the ledger blades with pipe and also the movement of welding torches, Horizontal ledger welding machine has screw wheel drive to adjust the length from 500 mm to 2500 mm. As per own requirement. Horizontal ledger welding Machine itself has adjustments for different welding angles as 360 angle adjustments. Left to right adjustments & height adjustments available for better penetration.

Automatic Ledger welding machine is used to weld ledger blades with the pipe without making any joint between them, It gives high production and accuracy to the product. Ledger post is used with the combination of Cup lock welding to make a structure. All the components are used in combination with each other. Base jack welding machines, Inner prop welding machines, Outer prop welding machines, Cuplock welding machines, Ringlock welding machines.

Horizontal Ledger Welding Machine Specifications:-

Ledger welding Double Side
Electric Supply		Single Phase 220 Volt HZ 50/60
Speed		2 to 10 RPM
Motor Drive		AC Inverter Type
Motor		Type AC 220-Volts-3-Phase
Torch Clamping		PNEUMATIC
Length Adjustment		150 to 2400 mm
Dimension		L x W x H 11.3×2.5×5.3 (Foot)

Frequently Asked Questions About Horizontal Ledger Welding Machine

Why discuss ledger lengths and end-connector drawings before ordering horizontal ledger welding machine?

Those details define the application that the equipment must accommodate. This depends on the fixture adjustment range and connector geometry. List the lengths and end variants before confirming the configuration.

How do I build an enquiry for the horizontal ledger welding machine shown here?

Select the listed machine options, add the required quantity and attach your application notes. State ledger lengths and end-connector drawings, together with the intended output and delivery location, so the quotation addresses your actual production task.

What does the horizontal ledger welding machine do within a production setup?

Horizontal ledgers are welded using workholding arranged around the ledger tube and end fittings. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
