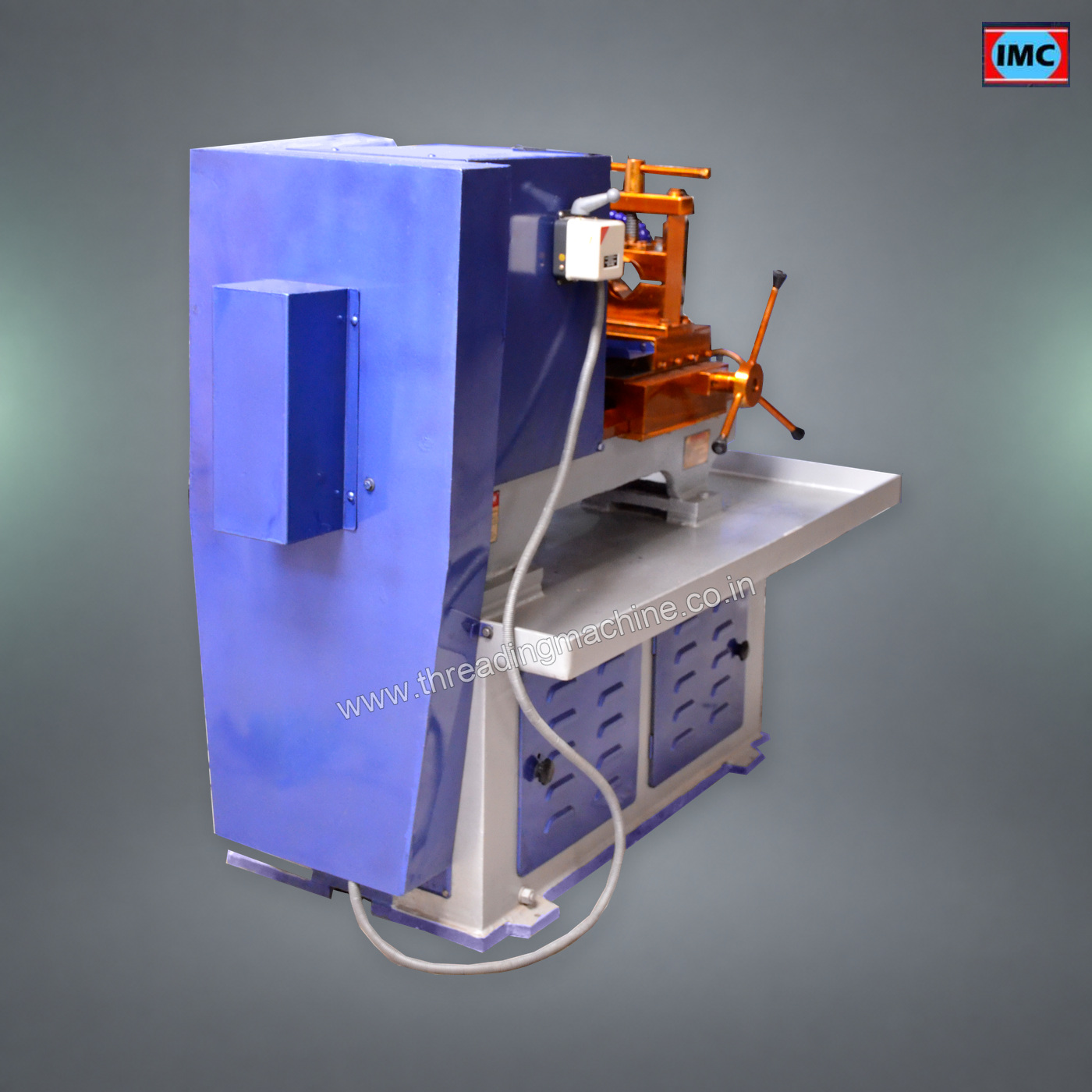

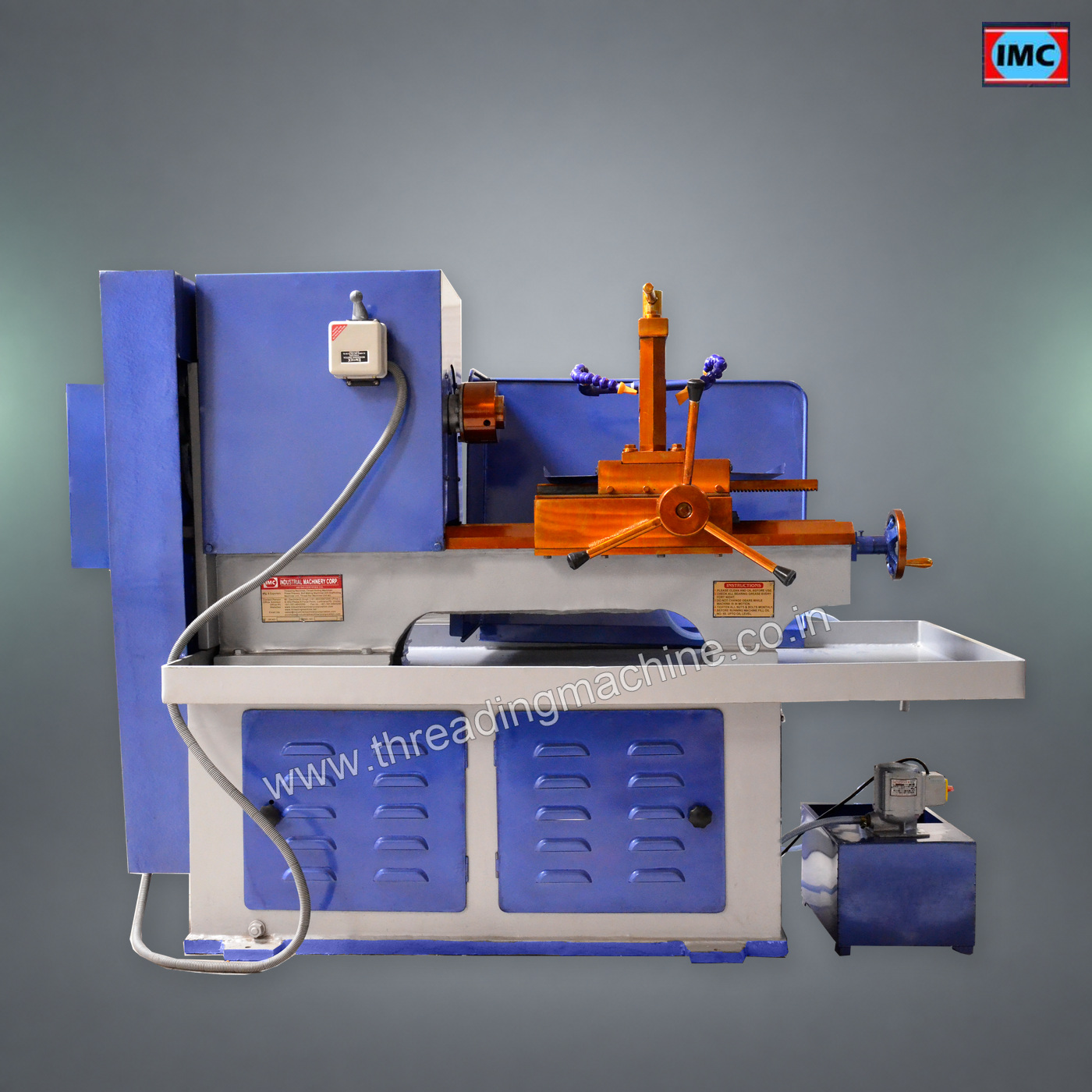

Rod Internal Threading & Tapping Machine

Internal Threading Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 3,500
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Rod Internal Threading & Tapping Machine for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to make internal threads by tapping prepared holes in compatible pipes and bored rod components against your component requirements. Send a drawing or sample and state hole diameter and depth, blind or through-hole form, material, thread standard and pitch. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address tap selection, tap holding, component alignment and chip-clearance arrangements. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Rod tapping here means an internal thread in a prepared bore, rather than external threading of a solid rod. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for internal thread size, useful depth and acceptance with the specified gauge or mating thread. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

  • Hole diameter and depth
  • Blind or through-hole form
  • Material
  • Thread standard and pitch

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Threading Machines, Internal Pipe Threading Machine, Threading Taps, Internal Threading tap, internal threading tools, Internal Threading Machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

The Internal Pipe Threading Machine manufactured by Industrial Machinery Corporation has earned a distinguished reputation in the industrial machine manufacturing field, owing to its exceptional quality and performance. Since its establishment in 2011, IMC has been committed to delivering top-notch industrial machinery to its clients, and its Internal Pipe Threading Machine is no exception.

Here's a detailed description of the Internal Pipe Threading Machine:

Quality Construction: The Machine is constructed with robust materials, ensuring durability and longevity even under heavy usage in industrial environments.

Customization: IMC understands the importance of meeting the specific requirements of their clients. Therefore, they offer customization options for the Machinery to ensure it fits the client's needs perfectly. This customization does not compromise the performance of the machinery.

Cutting Capacity: The Machinery boasts a cutting limit of up to 150 millimeters, providing versatility in threading various pipe sizes.

Five-Speed Gearbox: Equipped with a five-speed gearbox, the Machinery operates efficiently and swiftly, capable of threading more than 100 pipes in an hour. This feature enhances productivity and saves valuable time during operations.

Quality Raw Materials: IMC meticulously selects the finest quality raw materials for constructing their machines. This ensures that the Machine is sturdy enough to withstand continuous operation at high speeds without compromising performance.

Operator-Friendly Design: Despite its advanced capabilities, the Machines is designed to be operator-friendly. This makes it easy for workers to operate the machine efficiently, contributing to increased productivity and reduced downtime.

Overall, the Internal Pipe Threading Machine manufactured by Industrial Machinery Corporation is renowned for its quality, customization options, cutting capacity, speed, durability, and operator-friendly design. It has earned its place as one of the best Internal Pipe Threading Machines in India, catering to the diverse needs of industrial clients with precision and reliability.

Here are the names of two standard features that a buyer would get in his Internal Pipe Threading Machine made by an industrial machinery corporation.
  • Trapezoidal thread (as per IS – 12818)
  • Square Thread
Apart from the above-motioned features, several other features are found in the Internal Threading Machine made by us at our unity.
  • Simplicity in Operation (Layman can Operate)
  • Robustness and Studied design
  • AC Servo and PLC operated
  • Fast threading compared to conventional threading machine
  • No setting is required for different pipe diameter
  • No change of saw for the internal and external thread
Internal Threading Machine Specifications:
Model No. 1/2" to 2"1/2" to 3"
Threading length can be cut 150 MM150 MM
Number of speed in gear box 55
Production per hour 80 Pcs.80 Pcs.
Electrical Motor 3H.P. 960 RPM5 H.P. 960 RPM

Frequently Asked Questions About Internal Threading Machine

Those details define the application that the equipment must accommodate. Tool access, bore diameter and internal thread depth are essential. Send a section drawing showing the thread and surrounding features.

Select the listed machine options, add the required quantity and attach your application notes. State bore, internal thread length and access, together with the intended output and delivery location, so the quotation addresses your actual production task.

Internal pipe threads are cut to meet the specified connection geometry. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
