  • Hydraulic Pipe Threading Machine

Hydraulic Pipe Thread Cutting Machine

Hydraulic Pipe Threading Machine by Industrial Machinery Corporation

Review Hydraulic Pipe Thread Cutting Machine for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to cut external pipe threads with a hydraulic threading configuration and a die head carrying chasers against your component requirements. Send a drawing or sample and state pipe dimensions, material, thread form, pitch, thread length and required model configuration. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address hydraulic arrangements included in the model, pipe clamping, die-head fit and chaser settings. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Ask which movements are hydraulic on the quoted model; the word hydraulic does not imply every machine movement is automated. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for thread dimensions, sample fit and repeatability for the selected pipe job. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

  • Pipe dimensions
  • Material
  • Thread form
  • Pitch
  • Thread length and required model configuration

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Hydraulic Pipe Threading Machine, Industrial machinery, Industrial machinery Manufacturer in India, Automatic Hydraulic Pipe Threading Machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

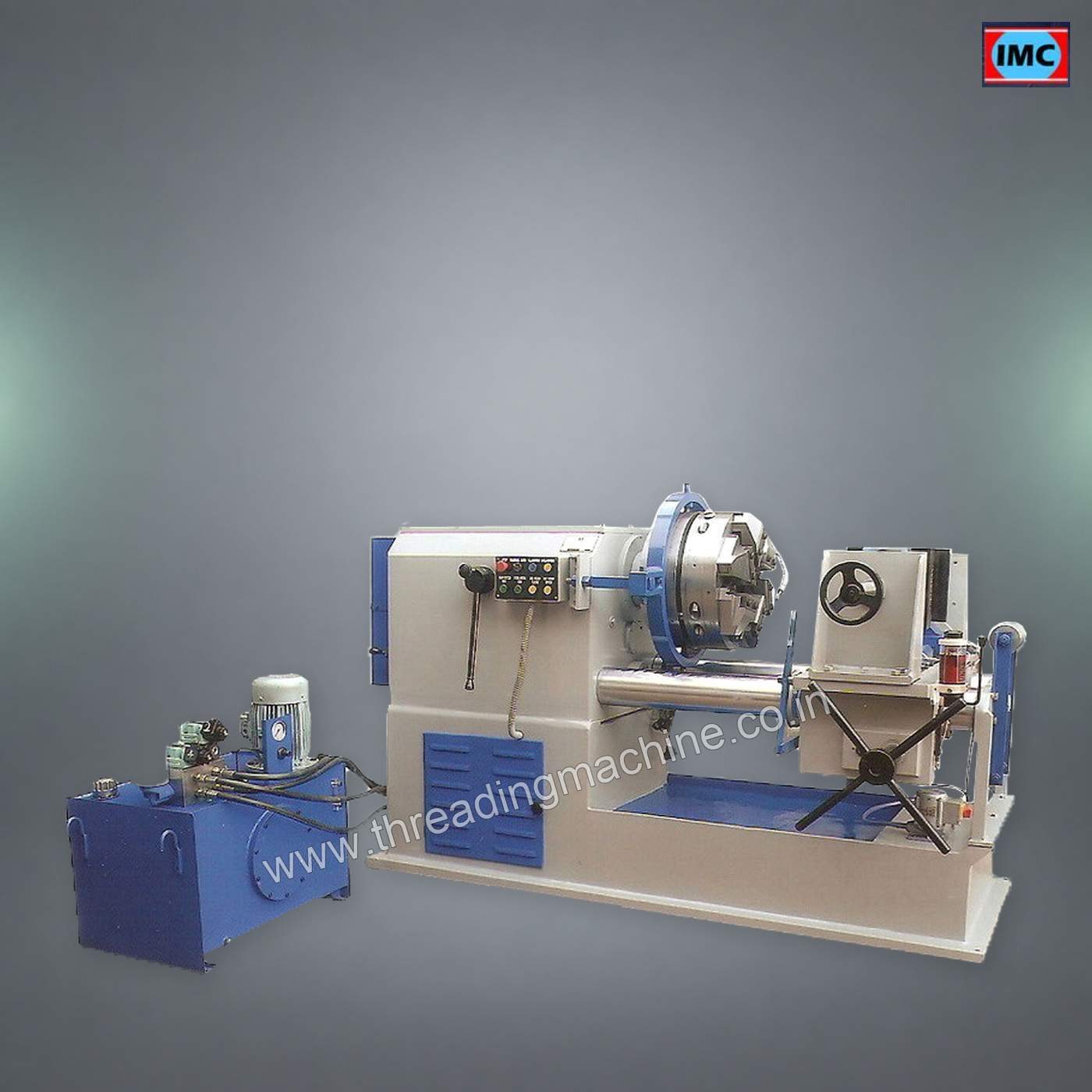

Pillar Type Hydraulic Threading Machine comes with a self-opening die head with headstock gears hardened with a power pack, with one hydraulic cylinder for lead screw box nut engaging, one hydraulic clamping cylinder, and one hydraulic cylinder for die-head opening with micro switches with automation with control panel.

Use For Threading On Bolts Pipes Rebars Bars Rods

Suitable For

  • Metric
  • BSP
  • BSPT
  • NPT
  • UNF
  • UNC
  • BSW
  • Acme threads
  • B.S.F. threads
Range
  • 1/2" to 2.1/2" Capacity Pipe
  • 1" to 4" Capacity Pipe
  • 2.1/2" to 6" Capacity Pipe
  • 4" to 8" Capacity Pipe
About Components
  • Head Stock : A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, and fitted with three extra heavy-duty bearings.
  • The Bed : The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit.
  • The Saddle : The Saddle is fitted on two pillars very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.
  • The Apron : The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It’s all gears are made of best quality steel.
  • Vice Jaws : The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.
» Specifications
Model1/2" to 2.1/2" (Pillar Type)1" to 4" (Pillar Type)2.1/2" to 6" (Pillar Type)4" to 8" (Pillar Type)
Saddle Movement12" – 16"10" – 12"10" – 12"10" – 12"
Spindle Speed Range60-90-12040-75-11525-5025-50
Number of Spindle Speed3322
Threading Capacity1/2" to 2.1/2"1" to 4"2.1/2" to 6"4"  to 8"
Production per Hour70-9035-4020-2515-20
H.P. Required7.5 H.P. 960 RPM12.5 H.P. 960 RPM15 H.P. 960 RPM20 H.P. 960 RPM
Lead ScrewAutomaticAutomaticAutomaticAutomatic
Weight (KG) Approx.990160019002500


pipe threading tangential chaser

Hydraulic Pipe Thread cutting Tangential Chasers

IMC Tangential Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standards. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment, assure that they will perform satisfactorily in service and produce quality threads within the tolerance for which they were intended. These Tangential Chasers are used in Hydraulic Pipe Thread Cutting Machine.

IMC Chaser is interchangeable. If one Pc. Of a chaser, the set is damaged & is beyond use. The same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing the entire set.

Read More…

Frequently Asked Questions About Hydraulic Pipe Threading Machine

Those details define the application that the equipment must accommodate. Ask for a model-specific operating sequence. The quotation should distinguish hydraulically operated movements from manual setup and adjustments.

Select the listed machine options, add the required quantity and attach your application notes. State the required feed and clamping sequence, together with the intended output and delivery location, so the quotation addresses your actual production task.

Hydraulic functions assist the pipe-threading arrangement according to the selected machine configuration. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
