Steel TMT Bar Thread Cutting Machine

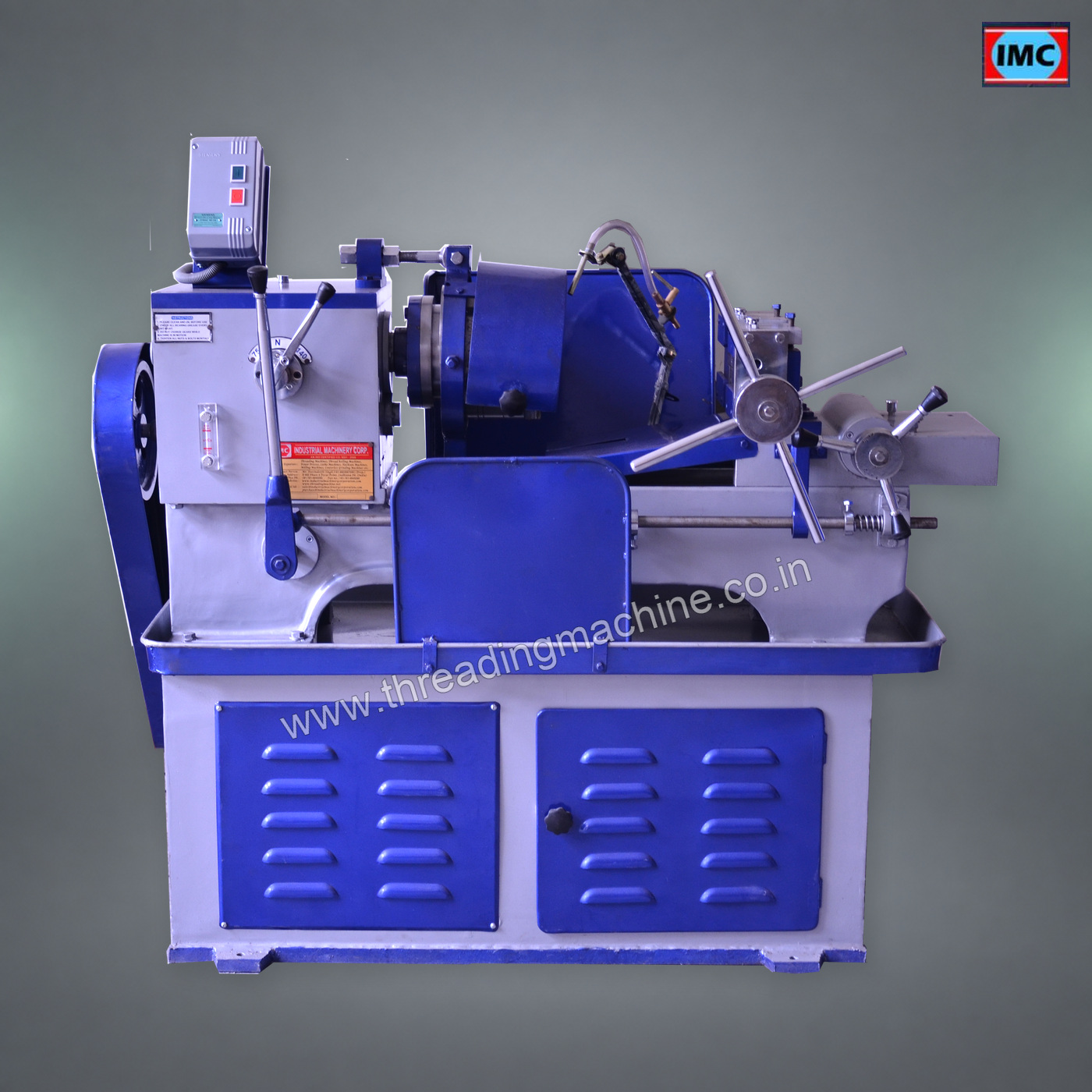

Steel TMT Chaser Rebar Threading Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 4,000
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Steel TMT Bar Thread Cutting Machine for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to cut threads on suitably prepared TMT rebar ends with chasers and a compatible die head against your component requirements. Send a drawing or sample and state bar grade and diameter, prepared-end drawing, coupler system, pitch and thread length. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address the required bar-end forging or other preparation, chaser set and bar holding. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. For forged-end applications, establish the forging and threading sequence together; the threader is a separate process stage. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for prepared-end dimensions, thread gauge acceptance and coupler engagement. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

  • Bar grade and diameter
  • Prepared-end drawing
  • Coupler system
  • Pitch and thread length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Bar Threading Machine Manufacture, Rebar Threading Machine, Rebar threading machines, tmt bar threading machines, rebar threading die head, Steel TMT Chaser Rebar Threading Machine, Semi automatic TMT Bar Threading Machine, Steel TMT Chaser Rebar Threading Machine, TMT Rebar Threading Machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

We have a wide range of semi-automatic Steel TMT Chaser Rebar Threading Machine which is used for site projects and it does outside threading on TMT bars. Steel TMT Chaser Rebar Threading Machine threads the standard EN8-D TMT bar. The threading is done after the Rebar TMT bar forging process. Threading Machine is used for High Production.

Industrial Machinery Corporation has been offering a High-Speed Steel TMT Chaser Rebar Threading Machine. This Rebar Threading Machine is made from high-density alloys. This machine is manufactured by our experts using excellent quality components and cutting-edge technology. This Threading Machine is used for saving time and effort. List of threads that can be cut using TMT Rebar Threading Machine: Metric, BSP, BSPT, NPT, UNF, UNC, BSW, Acme Threads, B.S.F. This Threading Machine has features like robust construction, high performance, and durability.

Steel TMT Chaser Rebar Threading Machine needs less maintenance and works for long hours. This Machine tool's cost is very cheap. We have gained all the vital mastery and specialized know-how to make the best Rebar Threading Machine arriving in the market. We assemble our Rebar Threading Machine with all the customizations as said by the customer preceding the beginning of production. If you need to buy the TMT rebar threading machine. Industrial Machinery Corporation is a great choice, as they not only offer a vast range, but also the assurance that each machine that is sent out of their unit is a piece of excellence.

Our TMT Rebar Threading Machines are running in various countries like Abu Dhabi, Algeria, Australia, Bangladesh, Bhutan, Canada, Central America, Colombia, Germany, Ghana, Jordan, Kuwait, Lebanon, Malaysia, Maldives, Mexico, Myanmar, Nepal, Peru, Philippines, Qatar, Saudi Arabia, South Australia, Sri Lanka, Thailand, Tunisia, Turkey, U.A.E, USA, Vietnam.

Steel TMT Chaser Rebar Threading Machine Specifications:

Model

1/4" to 1"

(6MM to 25MM)

(Bed Type)

3/8" to 1.1/2"

(10MM to 40MM)

(Bed Type)

1/2" to 2.1/2"

(12MM to 65MM)

(Bed type)

Saddle Movement10"10" - 12"22"
Spindle Speed Range75-14075-14045-90
Number of Spindle Speed223
Threading Capacity1/4" to 1"3/8" to 1.1/2"1/2" to 2.1/2"
Production per Hour60-8060-8070-90
H.P. Required3 H.P.3 H.P.7.5 H.P.
Lead ScrewOptionalOptionalOptional
Weight (KG) Approx.500550990


rebar threading tangential chaser

IMC Tangential Threading Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standards. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment, assure that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended. These Tangential Chasers are used in Rebar Threading Machine.

Frequently Asked Questions About Steel TMT Chaser Rebar Threading Machine

Those details define the application that the equipment must accommodate. The bar material, thread standard and finished profile determine the tooling choice. Include the connection drawing and any preparation requirements.

Select the listed machine options, add the required quantity and attach your application notes. State rebar grade and the chaser thread profile, together with the intended output and delivery location, so the quotation addresses your actual production task.

Chaser-based threading prepares steel reinforcement ends for the required connection thread. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
