Inner Prop Welding Machine

Inner Prop Welding Machine by Industrial Machinery Corporation

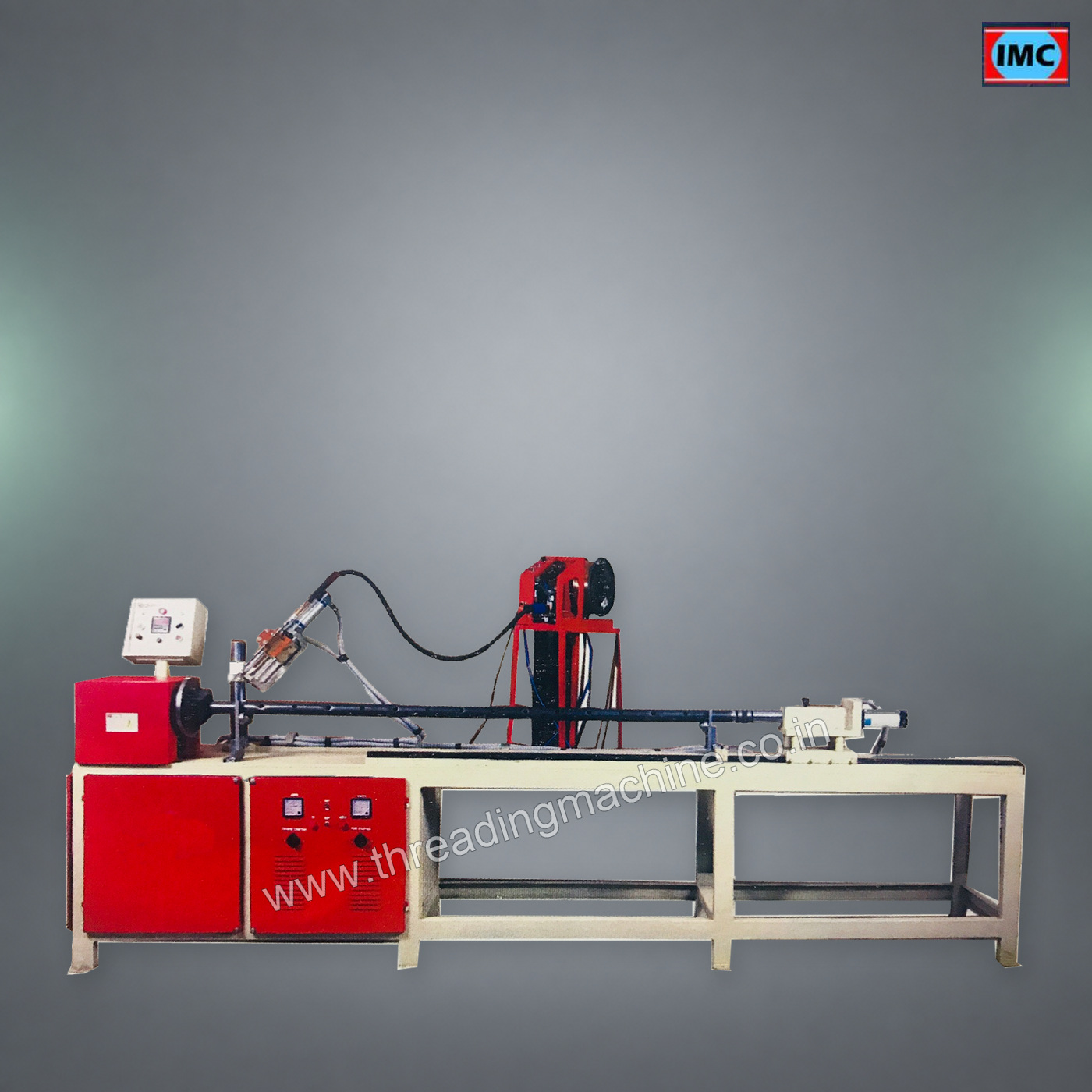

Inner Prop Welding Machine by Industrial Machinery Corporation thumbnail

Review Inner Prop Welding Machine for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to weld the specified inner-prop pipe to its base plate or other agreed end component against your component requirements. Send a drawing or sample and state inner pipe dimensions, end-component drawing, prop length and weld requirements. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address pipe location, plate or U-base fixture where required and access to the joint. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Ask IMC to confirm the supported component lengths and fixtures for the specific model being quoted. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for prop alignment, end geometry and the required weld acceptance. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

Inner pipe dimensions
End-component drawing
Prop length and weld requirements

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Purchase

Min And Max Diameter of the Job

Expected Price

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

Scaffolding Prop Nut Cup Handle Welding Machine

Scaffolding Prop Nut Cup Handle Welding Machine Manufacturer & Exporter

Scaffolding Prop Nut Cup Handle Welding Machine - IMC

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Automatic Inner prop welding machine is used to weld base plate with pipe without making any joint between them, It gives high production and accuracy to product. Inner prop is used with combination of Outer prop welding to make a structure. All the components are used in combination of each other Base jack welding machine, Inner prop welding machine, Outer prop welding machine, Cup lock welding machine, Ringlock welding machine.

Our clients can avail from us a quality range of inner prop welding machine. These are abrasion resistant, precise in design and conform to international quality standards. Known for high tensile strength, these are primarily utilized in the engineering industry. Further, these can also be customized as per the specifications are given by the clients.

Inner prop welding machine is designed to weld rectangular or square base plates or u-bases with the drilled pipe. machine hold and weld the base pipe with each other. the unit is pneumatically operated for clamping the de-clamping of job and also the movement of welding torches, the machine has screw wheel drive to adjust the length from 500mm to 3000mm. the machine itself has adjustments for different welding angles as 360 angle adjustments.

Inner Prop Welding Machine Specifications:-

Electric Supply		Single Phase 220 Volt HZ 50/60
Speed		2 to 10 RPM
Motor Drive		AC Inverter Type
Motor		Type AC 220-Volts-3-Phase
Torch Clamping		PNEUMATIC
Length Adjustment		150 to 2400 mm
Dimension		L x W x H 11.3x2.5x5.3 (Foot)

Frequently Asked Questions About Inner Prop Welding Machine

Why discuss tube length and end-component geometry before ordering inner prop welding machine?

Those details define the application that the equipment must accommodate. Different lengths and end details can require fixture adjustment or changes. Identify the full intended range when discussing the welding arrangement.

How do I build an enquiry for the inner prop welding machine shown here?

Select the listed machine options, add the required quantity and attach your application notes. State tube length and end-component geometry, together with the intended output and delivery location, so the quotation addresses your actual production task.

What does the inner prop welding machine do within a production setup?

Inner scaffold-prop assemblies are welded according to the component and end-joint arrangement. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
