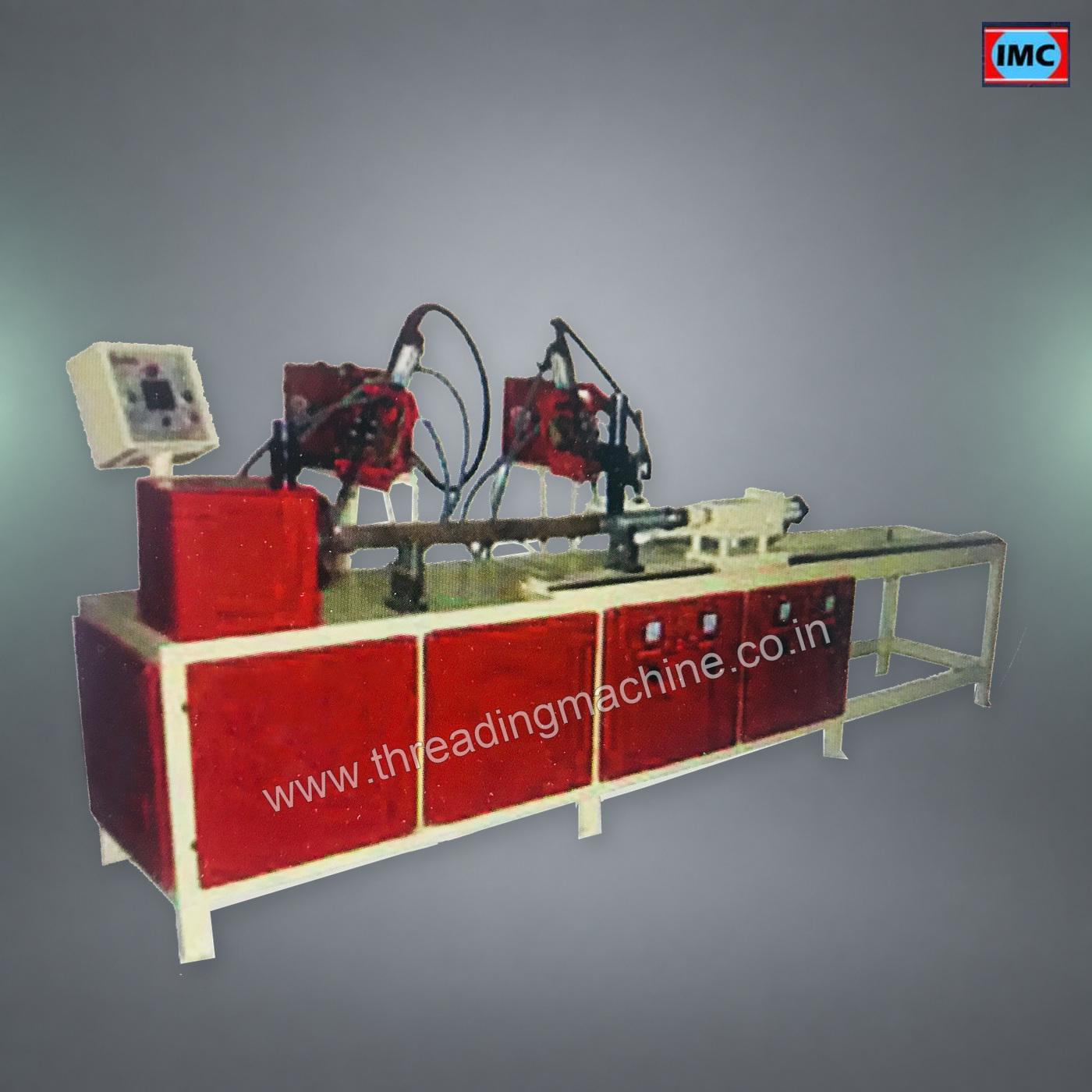

Outer Prop Welding Machine

Outer Prop Welding Machine by Industrial Machinery Corporation

Outer Prop Welding Machine by Industrial Machinery Corporation thumbnail

Review Outer Prop Welding Machine for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to weld the specified outer scaffolding-prop pipe connections using suitable fixtures against your component requirements. Send a drawing or sample and state outer pipe dimensions, plate or sleeve geometry and the assembly weld drawing. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address locating and clamping fixtures, joint access and the welding arrangement supplied. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Identify each outer-prop joint in the drawing so that plate and sleeve operations are included explicitly in the offer. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for assembly alignment, required weld size and the specified joint inspection. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

Outer pipe dimensions
Plate or sleeve geometry and the assembly weld drawing

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Min And Max Diameter of the Job

Maximum Length Required

Quantity Required

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

Scaffolding Prop Nut Cup Handle Welding Machine

Scaffolding Prop Nut Cup Handle Welding Machine Manufacturer & Exporter

Scaffolding Prop Nut Cup Handle Welding Machine - IMC

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Automatic Outer prop welding machine is used to weld base plate with pipe and sleeve without making any joint between them, it gives high production and accuracy to the product. Outer prop is used with the combination of Inner prop and base jack to make a structure. All the components are used in combination with each other Base jack welding machines, Inner prop welding machines, Outer prop welding machines, Cup lock welding machines, Ring lock welding machines.

This system is based on circular welding on both base plate with pipe and pipe with the threaded sleeve from both positions as from top side or inside of sleeve for the fastest production and uniform welding and it helps operator be safe from burning skin of continuous welding process. This unit is base on 380 -415 volts 50-60 Hz. Ac as input supply and controlled with Siemens make plc system and motor drive, clamping of job and de-clamping is pneumatically operated for movement of welding torches.

Founded in the year 2011 at Ludhiana, Punjab, India. we “Industrial Machinery Corporation” are manufacturing and exporting a qualitative of Welding Machines, Scaffolding Welding Fixtures, Welding Machinery, Welding Equipment and Special Purpose Welding Machine. These products are manufactured using the best quality raw material, components, and cutting-edge technology as per the set industry standards. These products are well-known for features like corrosion resistance, durability, low maintenance, hassle-free operation and long life. We export these products to all countries. Our organization is supervised by, Mr. Davinder Jit Singh (CEO), who has immense industry experience. We are offering our products under reputed brands like IMC.

OUTER PROP WELDING MACHINE SPECIFICATIONS:-

Electric Supply		Single Phase 220 Volt HZ 50/60
Speed		2 to 10 RPM
Motor Drive		AC Inverter Type
Motor		Type AC 220-Volts-3-Phase
Torch Clamping		PNEUMATIC
Length Adjustment		150 to 2400 mm
Dimension		L x W x H 11.3x2.5x5.3 (Foot)

Frequently Asked Questions About Outer Prop Welding Machine

Why discuss outer tube and attachment drawings before ordering outer prop welding machine?

Those details define the application that the equipment must accommodate. The fixture must locate the actual tube and attachments consistently. Provide sizes, joint positions and variants to be produced.

How do I build an enquiry for the outer prop welding machine shown here?

Select the listed machine options, add the required quantity and attach your application notes. State outer tube and attachment drawings, together with the intended output and delivery location, so the quotation addresses your actual production task.

What does the outer prop welding machine do within a production setup?

Outer scaffold-prop components are located and welded with fixtures matched to their joints. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
