Rebar Threader

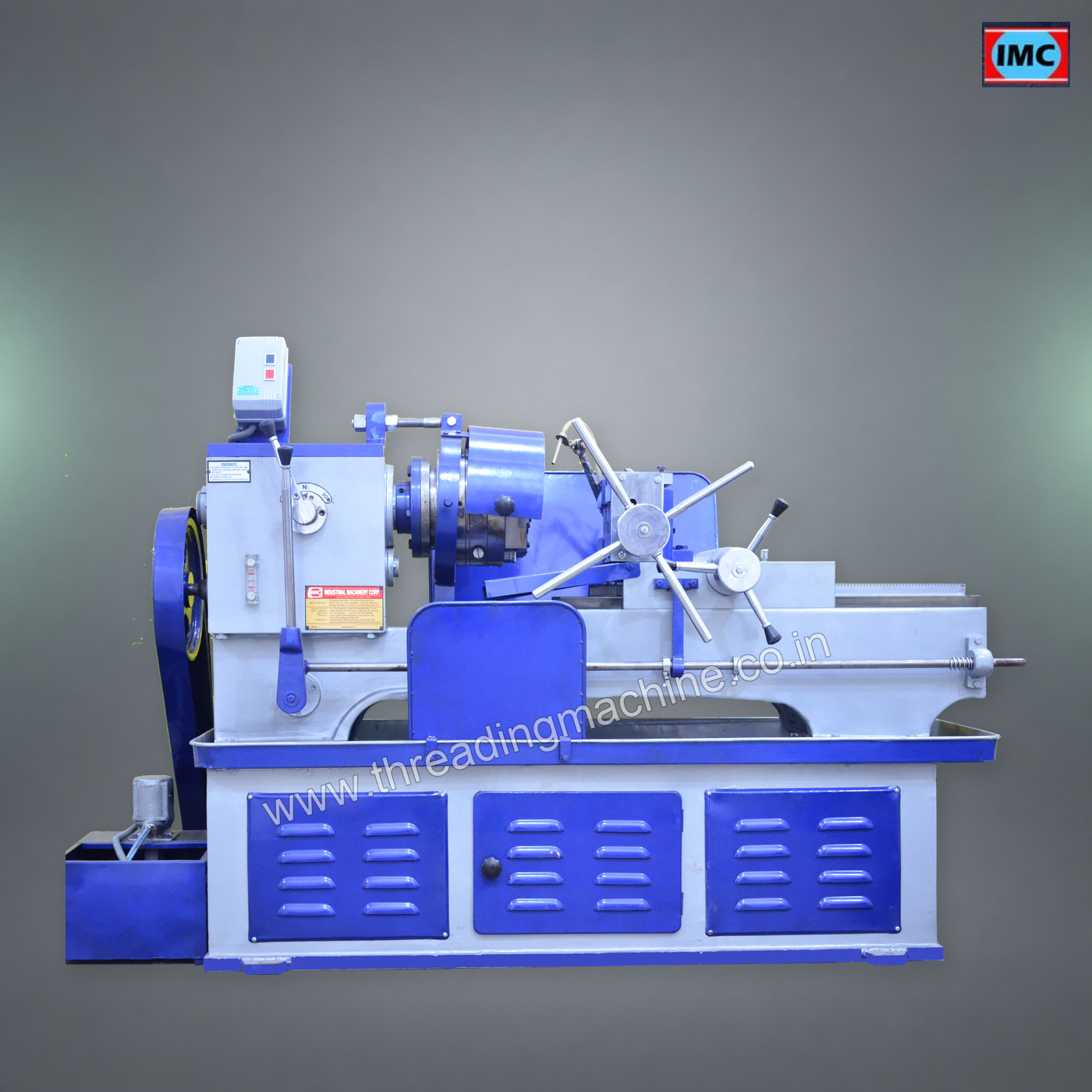

Rebar Threading Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 3,500
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Rebar Threader for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to cut the required thread on prepared reinforcement-bar ends for the specified coupler connection against your component requirements. Send a drawing or sample and state rebar diameter and grade, end preparation, coupler thread, pitch and required thread length. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address bar-end preparation, compatible die-head tooling, clamping and full-length bar support. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Clarify the preparation sequence for the intended coupler system instead of assuming every system uses the same bar-end geometry. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for the finished thread, coupler engagement and inspection defined by the connection specification. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

  • Rebar diameter and grade
  • End preparation
  • Coupler thread
  • Pitch and required thread length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Bar Threading Machine, Rebar threading machines, tmt bar threading machines, Industrial machinery, Industrial machinery Manufacturer in India, Rebar Thread Cutting Machine at Best Price in India, Bar Threader, bar thread cutting machines, rebar thread cutting machines
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

We offer well designed Rebar Thread Cutting Machine in India and abroad. The bar Thread Cutting Machine we offer is known for superb efficiency and low operational & maintenance costs. We are counted among the top Rebar Thread Cutting Machine Manufacturers, Suppliers, and Exporters. We offer Bar Thread Cutting Machines at reasonable prices. The Thread Cutting Machine consists of a Base, Head Stock, Saddle, Bed or Pillar Type Clamping Vice, Die Head, Apron and Vice Jaws.

Suitable For
  • Matric
  • BSP
  • BSPT
  • NPT
  • UNF
  • UNC
  • BSW
  • B.S.F. threads
Range
  • 1/2" to 2.1/2" Capacity Pipe
  • 1" to 4" Capacity Pipe
  • 2.1/2" to 6" Capacity Pipe
  • 4" to 8" Capacity Pipe
About Components
  • Head Stock : A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.
  • The Bed : The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit.
  • The Saddle : The Saddle is fitted on two pillars very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.
  • The Apron : The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It’s all gears are made of best quality steel.
  • Vice Jaws : The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.

Specifications

MODEL

1/4" TO 1"

(6MM to 25MM)

(BED TYPE)

3/8" TO 1.1/2"

(10MM to 40MM)

(BED TYPE)

1/2" TO 2.1/2"

(12MM to 65MM)

(BED TYPE)

Saddle Movement10"13"22"
Spindle Speed Range75-14075 -14045 - 90
Number of Spindle Speed222
Threading Capacity1/4" to 1"3/8" to 1.1/2"1/2" to 2.1/2"
Production per Hour60-8060-8070-90
H.P. Required3 H.P.3 H.P.7.5 H.P.
Lead ScrewOptionalOptionalOptional
Weight (KG) Approx.500550

990


Model

1/2" to 2.1/2"

(12MM to 65MM)

(Pillar Type)

1" to 4"

(25MM to 100MM)

(Pillar Type)

2.1/2" to 6"

(65MM to 150MM)

(Pillar Type)

4" to 8"

(100MM to 200MM)

 (Pillar Type)

Saddle Movement12" – 16"10" – 12"8"8"
Spindle Speed Range60-90-12040-75-11525-5025-50
Number of Spindle Speed3322
Threading Capacity1/2" to 2.1/2"1" to 4"2.1/2" to 6"4" to 8"
Production per Hour70-9035-4020-2515-20
H.P. Power Require (960 RPM)7.5 H.P.12.5 H.P.15 H.P.20 H.P.
Lead ScrewAutomaticAutomaticAutomaticAutomatic
Weight (KG) Approx.990160019002500

rebar threading tangential chaser

Rebar Thread Cutting Tangential Chasers

IMC Tangential Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standard. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment, assure that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended. These Tangential Chasers are used in the Rebar Thread Cutting Machine.

IMC Chaser is interchangeable. If one Pc. Of a chaser, the set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing the entire set.

Read More…

Frequently Asked Questions About Rebar Threading Machine

Those details define the application that the equipment must accommodate. Yes. End preparation, thread dimensions and inspection requirements need to follow the connection specification as a whole.

Select the listed machine options, add the required quantity and attach your application notes. State bar grade and the complete coupler specification, together with the intended output and delivery location, so the quotation addresses your actual production task.

Reinforcement-bar ends are threaded for the specified bar-to-coupler connection. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
