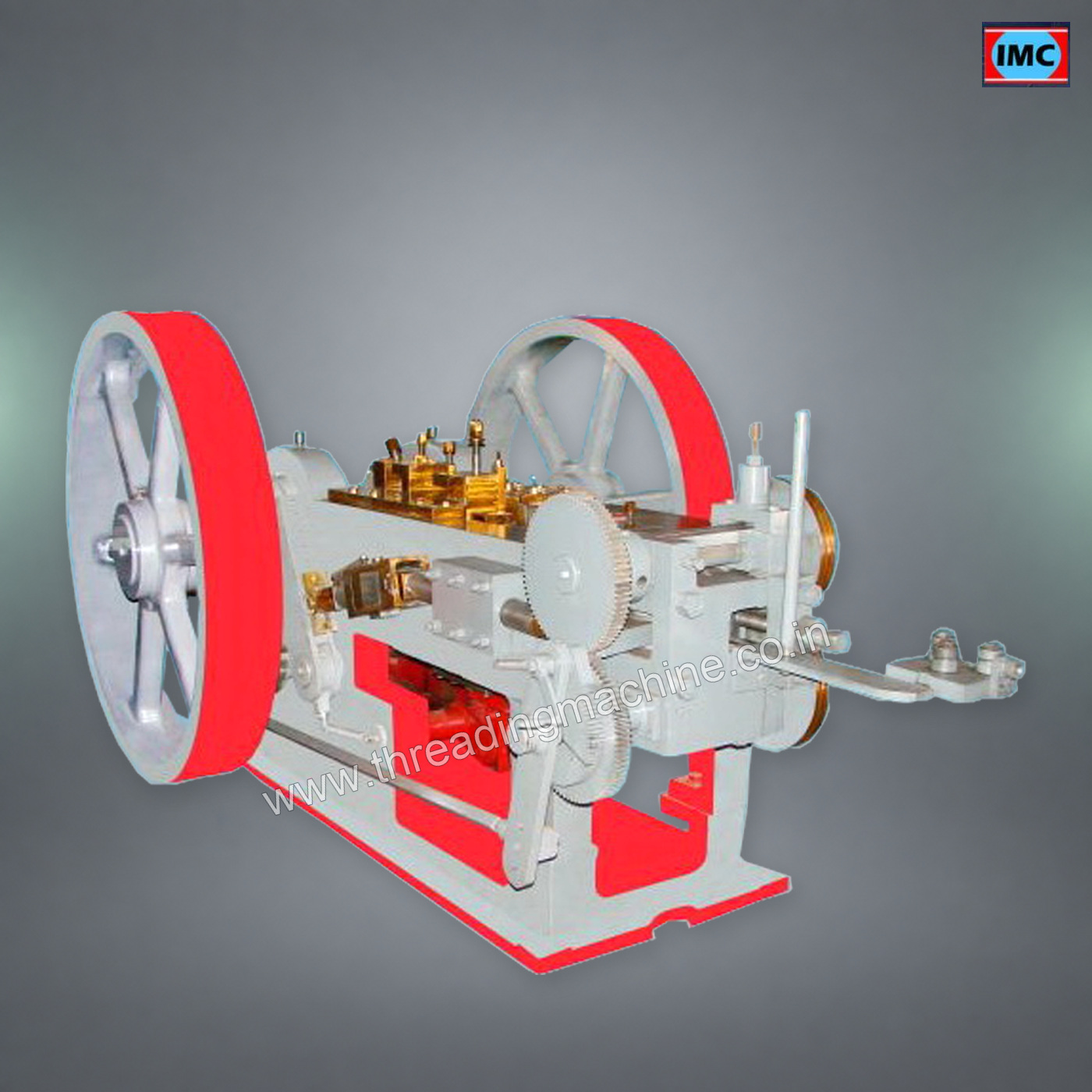

Cold Heading Machine for Bolts

Bolt Head Making Machine (Automatic) product view

Bolt Head Making Machine (Automatic) product view thumbnail

Review Cold Heading Machine for Bolts for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to form bolt or fastener heads on suitable blanks by cold heading with matched tooling against your component requirements. Send a drawing or sample and state material grade, starting stock, head shape, shank dimensions and blank length. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address heading dies and punches, feeding arrangement and the forming sequence for the component. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Cold heading prepares the fastener blank; threading and any later trimming should be identified as separate stages where required. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for head geometry, blank dimensions and condition before subsequent thread production. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

Material grade
Starting stock
Head shape
Shank dimensions and blank length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Purchase

Min And Max Diameter of the Job

Maximum Length Required

Model No You Are Interested

Expected Price

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

We offer the premium quality Cold Bolt Head MakingMachine that gives high-volume production. The Cold Bolt Head Making Machine manufactured, exported and supplied by us, is extremely durable as it is made from high grade raw material. It is designed using the advanced technology; hence it is maintenance free and has long functional life.

Advantages :

The machine is extremely safe to use as the Cut-off and knock-out mechanism has various safety devices. Hence, even in the case of any irregular functioning, it avoids the accidents.
The heading slide has a mobile design that carries two heading punches for the processes of straightening and finishing.
The two punches & dies are easily adjustable at the accessible points and can be operated manually.
Our machine has the vertical wire straightening bearing rollers designer equipment that enables straight wire feeding facilitating the processing of long bolt.
The various parts of the machine such as all rollers, roller pins, cames and are made high grade steel which is properly heat-treated and grounded.

It Produces :

Bolts
Screws
Rivets
Taper Roller Heading, etc.

Bolt Head Making Machine Specifications:

Model No.	Capacity (Length x Dia) \n	Production (Per Minute)	Power Required (H.P x RPM)
IMC-CHM-2	2" x 1/4" (50MM x 6MM)	80-85	3 x 960
IMC-CHM-2.5	2.5" x 5/16" (65MM x 8MM)	70-75	5 x 960
IMC-CHM-3	3" x 3/8" (75MM x 10MM)	60-65	10 x 960
IMC-CHM-4	4" x 1/2" (100MM x 12MM)	45-50	15 x 960
IMC-CHM-5	5" x 5/8" (125MM x 15MM)	35-40	20 x 960
IMC-CHM-6	6" x 3/4" (150MM x 20MM)	25-30	35 x 1440

Frequently Asked Questions About Bolt Head Making Machine (Automatic)

Why discuss stock grade and head geometry before ordering bolt head making machine (automatic)?

Those details define the application that the equipment must accommodate. Head geometry and material influence the forming arrangement and tools. Supply the finished fastener drawing so the proposed process can be reviewed.

How do I build an enquiry for the bolt head making machine (automatic) shown here?

Select the listed machine options, add the required quantity and attach your application notes. State stock grade and head geometry, together with the intended output and delivery location, so the quotation addresses your actual production task.

What does the bolt head making machine (automatic) do within a production setup?

Cold heading forms suitable stock into fastener heads through a defined forming sequence. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.

RELATED PRODUCTS

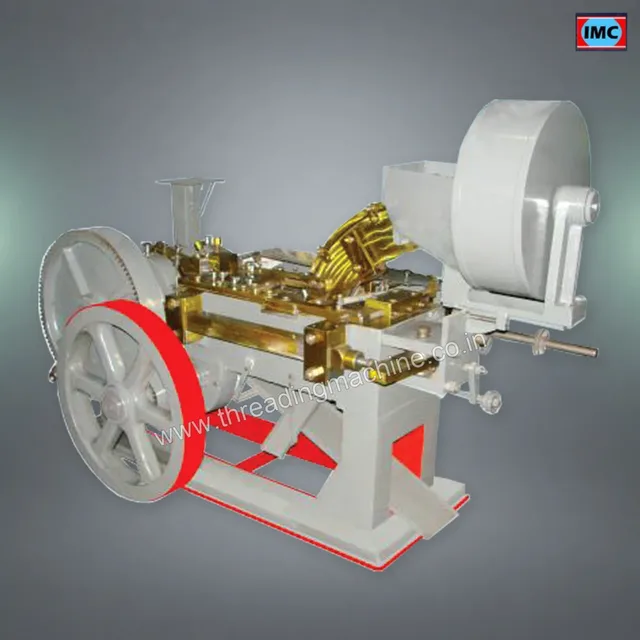

Automatic Bolt Head Trimming Machine

Review Bolt Head Trimming & Shank Reducing Machine for your component and the required production operation. Prepare a job-specific equipment enquiryIMC can review a configuration to trim bolt hea ...

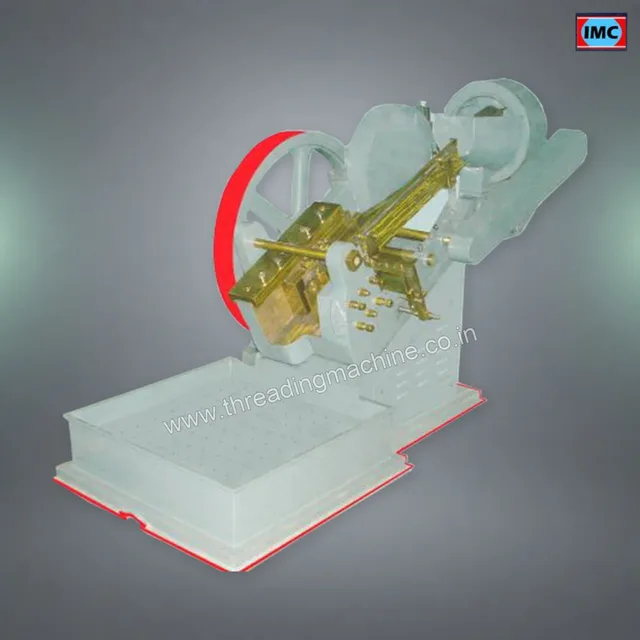

Bolt Thread Rolling Machine
