Cuplock Pipe Welding Machine

Cuplock Welding Machine by Industrial Machinery Corporation

Cuplock Welding Machine by Industrial Machinery Corporation thumbnail

Review Cuplock Pipe Welding Machine for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to weld the specified cups and lock pins on scaffolding vertical pipe assemblies against your component requirements. Send a drawing or sample and state pipe dimensions, cup spacing, pin locations, assembly length and weld drawing. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address the cup positions, pipe clamping and the welding configuration supplied. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Distinguish initial cup positioning and tacking from final cup welding when planning the cuplock production route. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for cup and pin alignment together with the specified weld acceptance. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

Pipe dimensions
Cup spacing
Pin locations
Assembly length and weld drawing

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Min And Max Diameter of the Job

Maximum Length Required

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

Scaffolding Prop Nut Cup Handle Welding Machine

Scaffolding Prop Nut Cup Handle Welding Machine Manufacturer & Exporter

Scaffolding Prop Nut Cup Handle Welding Machine - IMC

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

The name of Industrial Machinery Corporation is ranked in top ten manufacturers and exporters of welding machines owing to its best quality welding machinery that we have manufactured which are popular all over the world. We have been in the business of production and export of welding machines for more than a decade now and have all the knowledge that is required to be the top manufacturer and exporter. Industrial Machinery Corporation has gained a huge name as an expert in manufacturing Cup lock Welding Machines and this is true too, as we truly have the best team and set-up to manufacture Cup lock Welding Machines. One of the best-known welding machines that we make here is Cuplock Welding Machine.We make this Cup lock Welding Machines with utmost care and considering all the types of job, the user would want to accomplish using it. To meet variegated demands of our esteemed clients, we are engaged in manufacturing and exporting an exclusive range of Cuplock Welding Machine.

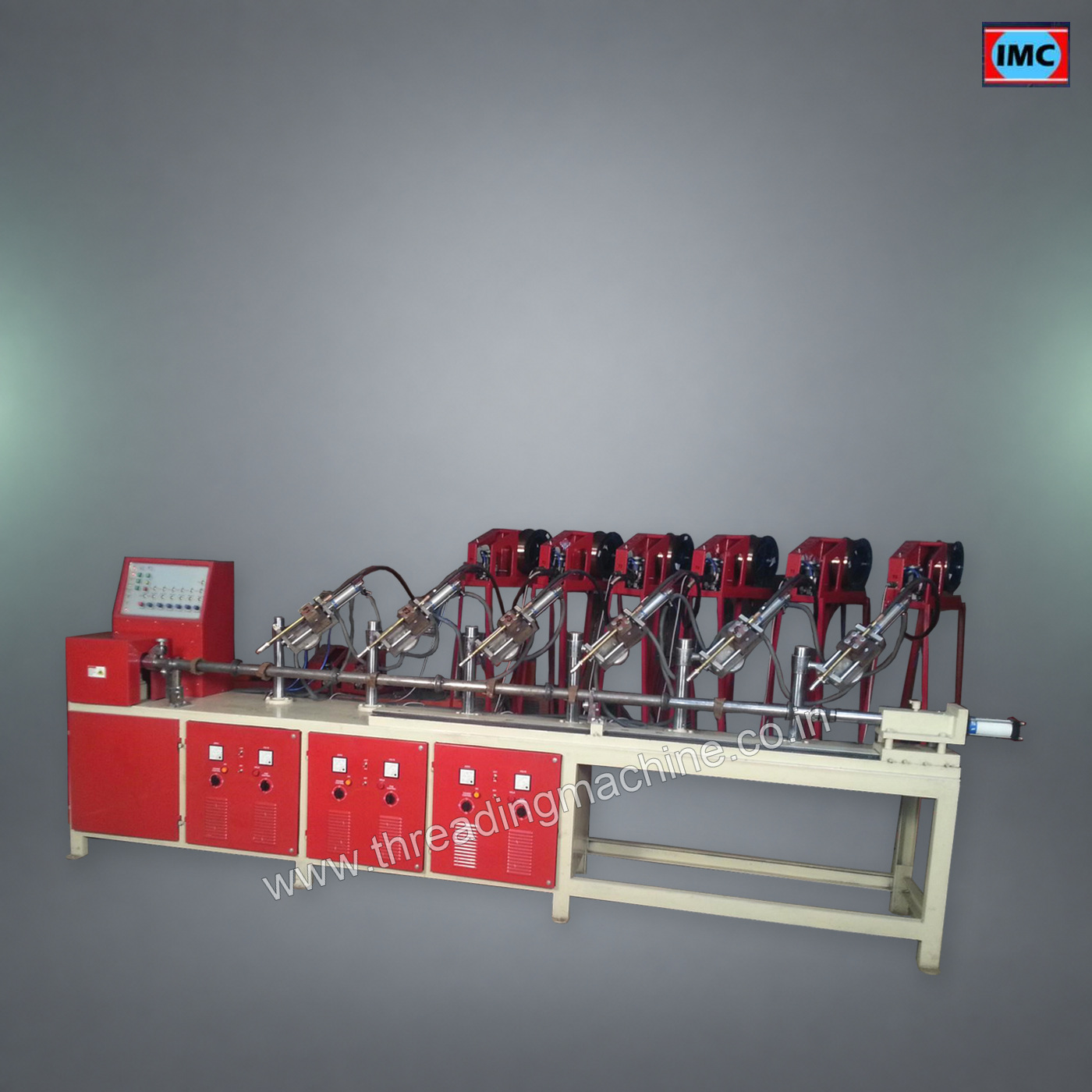

This special machine is for scaffolding Cuplock Welding Machine and the pipe with Cups and lock pins automatic welding. Equipment makes use advanced programmable control technology to Finish welding in one-time, improve production efficiency, and reduce labor intensity, welding effect to meet. We are proud of our Cuplock Welding Machines which is considered best in terms of quality, robust design, durability, compatibility, adaptability, strength, and prices.

This system is based on Circular welding on Cups with Pipe from three positions of cups for Fastest production and Uniform Welding and it helps operator be safe from burning skin of continuous welding process, By using this machine one can save the Consumption of CO2 Gas and weld with proper welding thickness on each single job as per standard required and the production out comes will help them to be competitive in market by fastest supply, clean and safe process of welding.

CUPLOCK WELDING MACHINE SPECIFICATIONS:-

Input voltage		3- phase 380-415 V 300A
Control system input voltage		3- phase 380-415 V
Control system		1kw
Motor power		.86 kw
Speed		6-25 s/round
Poling		1-3 m (2-6 pics)
Welding torch distance		500 mm
Motion way		Pneumatic
Welding angle		0-600 Degree
Maximum work piece number		6 pics
Dimension		3900X800X1700 mm
Machine area		4.5X3.5m
Weight		1.5T

Frequently Asked Questions About Cuplock Welding Machine

Why discuss cup spacing, tube size and assembly drawing before ordering cuplock welding machine?

Those details define the application that the equipment must accommodate. The proposed fixture must suit the required positions and component sizes. Share the complete assembly drawing and all variants.

How do I build an enquiry for the cuplock welding machine shown here?

Select the listed machine options, add the required quantity and attach your application notes. State cup spacing, tube size and assembly drawing, together with the intended output and delivery location, so the quotation addresses your actual production task.

What does the cuplock welding machine do within a production setup?

Cuplock components are welded with fixtures selected for the tube and cup positions. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
