Bolt Head Trimming & Shank Reducing Machine

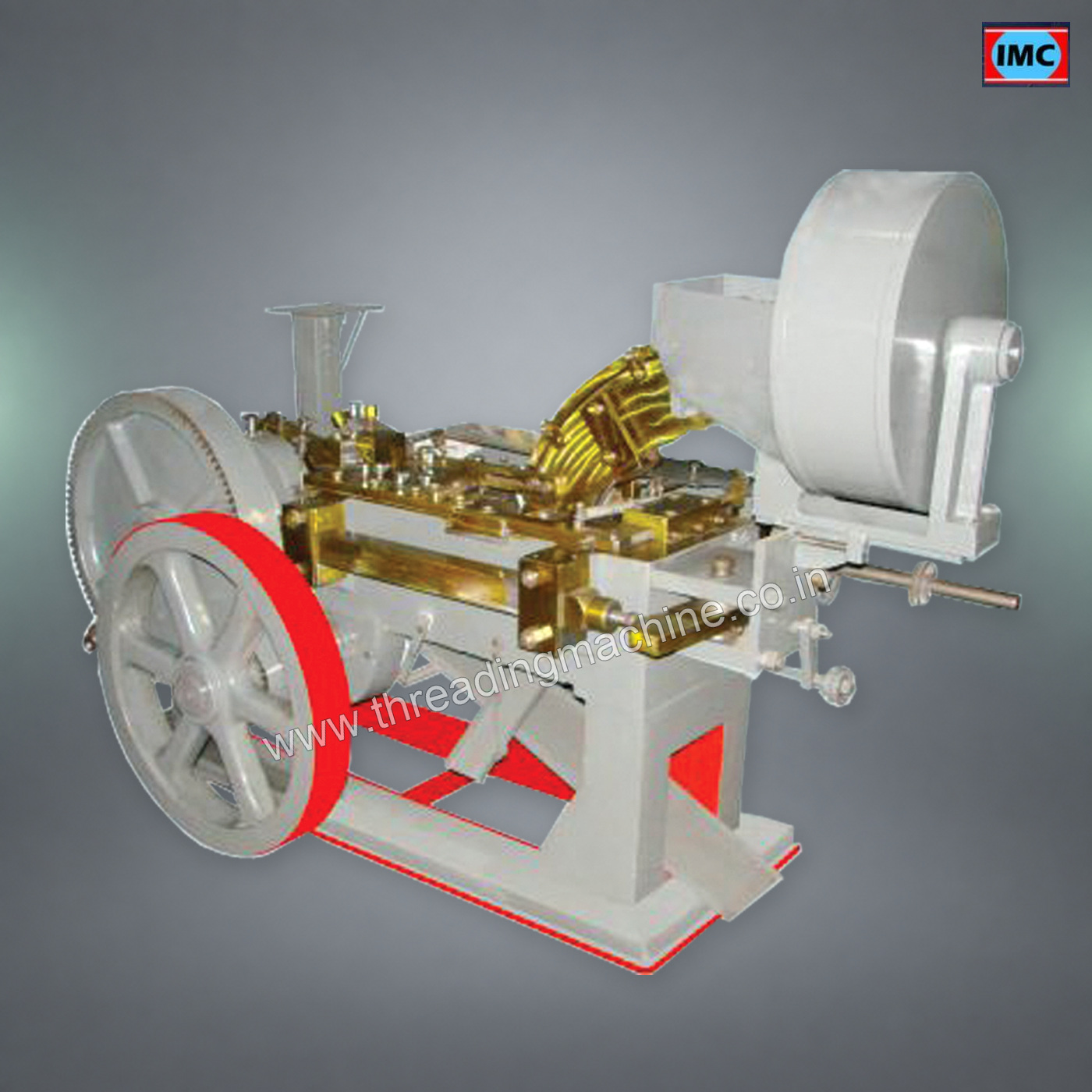

Automatic Bolt Head Trimming Machine by Industrial Machinery Corporation

Automatic Bolt Head Trimming Machine by Industrial Machinery Corporation thumbnail

Review Bolt Head Trimming & Shank Reducing Machine for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to trim bolt heads and prepare the specified shank reduction with suitable tooling against your component requirements. Send a drawing or sample and state incoming blank dimensions, finished head profile, shank diameter and material. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address the trimming or reducing tools required, blank orientation and feeding setup. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Distinguish head trimming from shank reduction in the drawing and ask which operations the quoted tooling performs. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for head dimensions, reduced shank size and the prepared blank for the next operation. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

Incoming blank dimensions
Finished head profile
Shank diameter and material

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Min And Max Diameter of the Job

Maximum Length Required

Model No You Are Interested

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

IMC Automatic Bolt Head Trimming Machine is to make the Head of Bolt hexagon or square as per requirement. The bolt head trimming and shank reducing Machine is fully automatic and easy to operate. Bolt head trimming and shank reducing machinery is made to fulfill various requirements with Bolts by the customers.

Bolt Head Trimming Machine Specifications:

Model No.	Length Of Bolt	Dia. Of Bolt	Production Per Minute	Power Required (H.P x RPM
IMC-HTM-1	1/2? – 1?	80-85	80 – 90	1 x 1440
IMC-CHM-2.5	1/2? – 2?	70-75	60 – 80	3 x 1440
IMC-CHM-3	3/4? – 3?	60-65	50 – 60	5 x 1440
IMC-CHM-4	1? – 4?	45-50	40 – 45	7.5 x 1440
IMC-CHM-5	1.5? – 5?	35-40	30 – 35	15 x 1440
IMC-CHM-6	2? – 6?	25-30	25 – 30	20 x 1440

Frequently Asked Questions About Automatic Bolt Head Trimming Machine

Why discuss incoming blank and final bolt dimensions before ordering automatic bolt head trimming machine?

Those details define the application that the equipment must accommodate. Tooling depends on head form and shank dimensions. Identify each bolt drawing and ask which tooling changes are needed across the range.

How do I build an enquiry for the automatic bolt head trimming machine shown here?

Select the listed machine options, add the required quantity and attach your application notes. State incoming blank and final bolt dimensions, together with the intended output and delivery location, so the quotation addresses your actual production task.

What does the automatic bolt head trimming machine do within a production setup?

Bolt blanks are processed for the required head trimming and shank geometry. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
