Scaffolding Pipe Threader

Scaffolding Pipe Threading Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 7,000
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Scaffolding Pipe Threader for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to prepare external cut threads on suitable scaffolding pipe ends for their mating components against your component requirements. Send a drawing or sample and state tube diameter, wall thickness, material, thread pitch, threaded length and mating nut drawing. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address pipe vice and supports, compatible thread-cutting chasers and available travel. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Keep thread cutting and thread rolling distinct when selecting the equipment and the starting pipe section. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for fit with the intended scaffolding component and the specified thread dimensions. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

  • Tube diameter
  • Wall thickness
  • Material
  • Thread pitch
  • Threaded length and mating nut drawing

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Threading Machine Manufacturer, Scaffolding Pipe Threading Machine, Industrial machinery Manufacturer in India, Electric Pipe Threading Machine at Best Price in India, automatic pipe threading machine, IMC Automatic Scaffolding Pipe Thread Machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

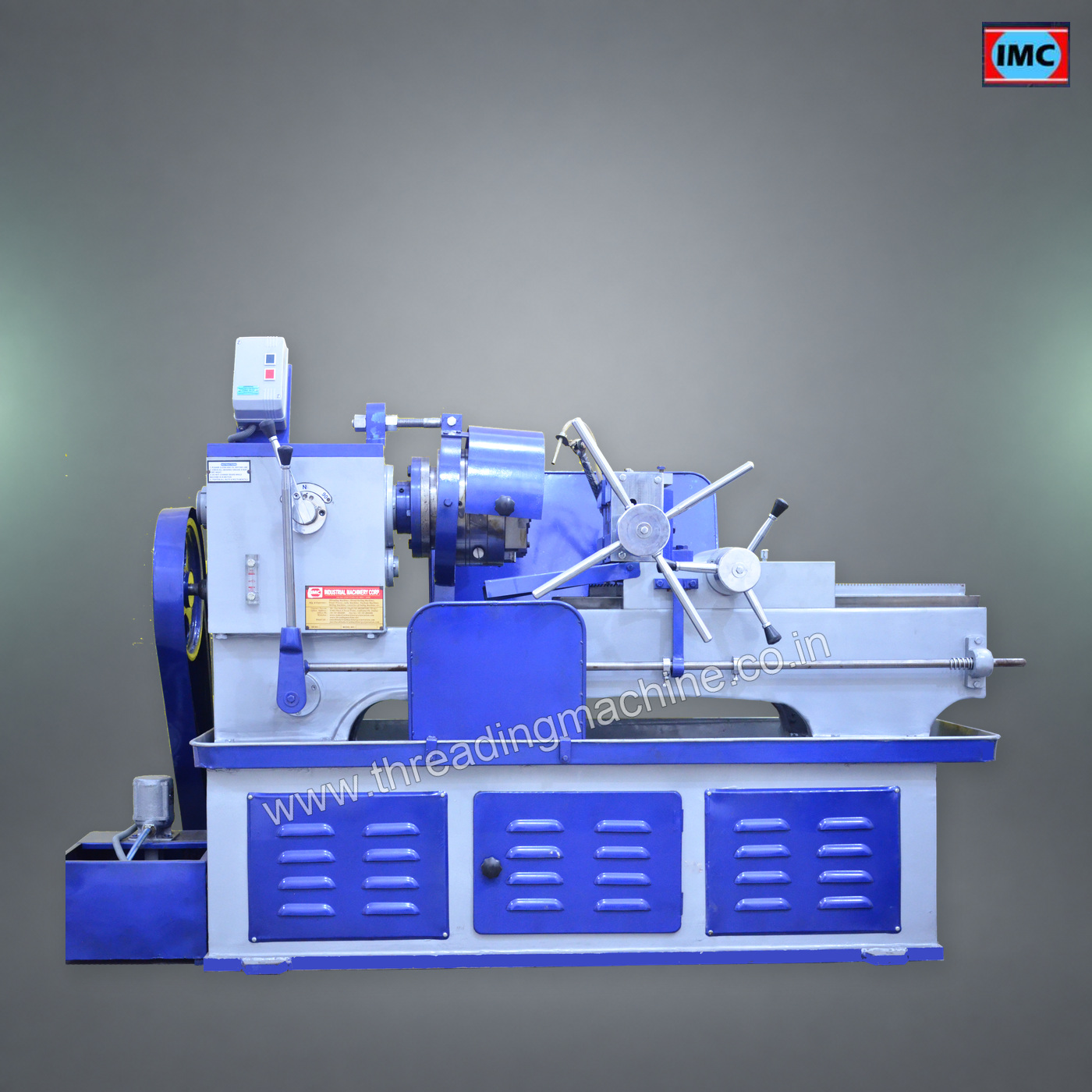

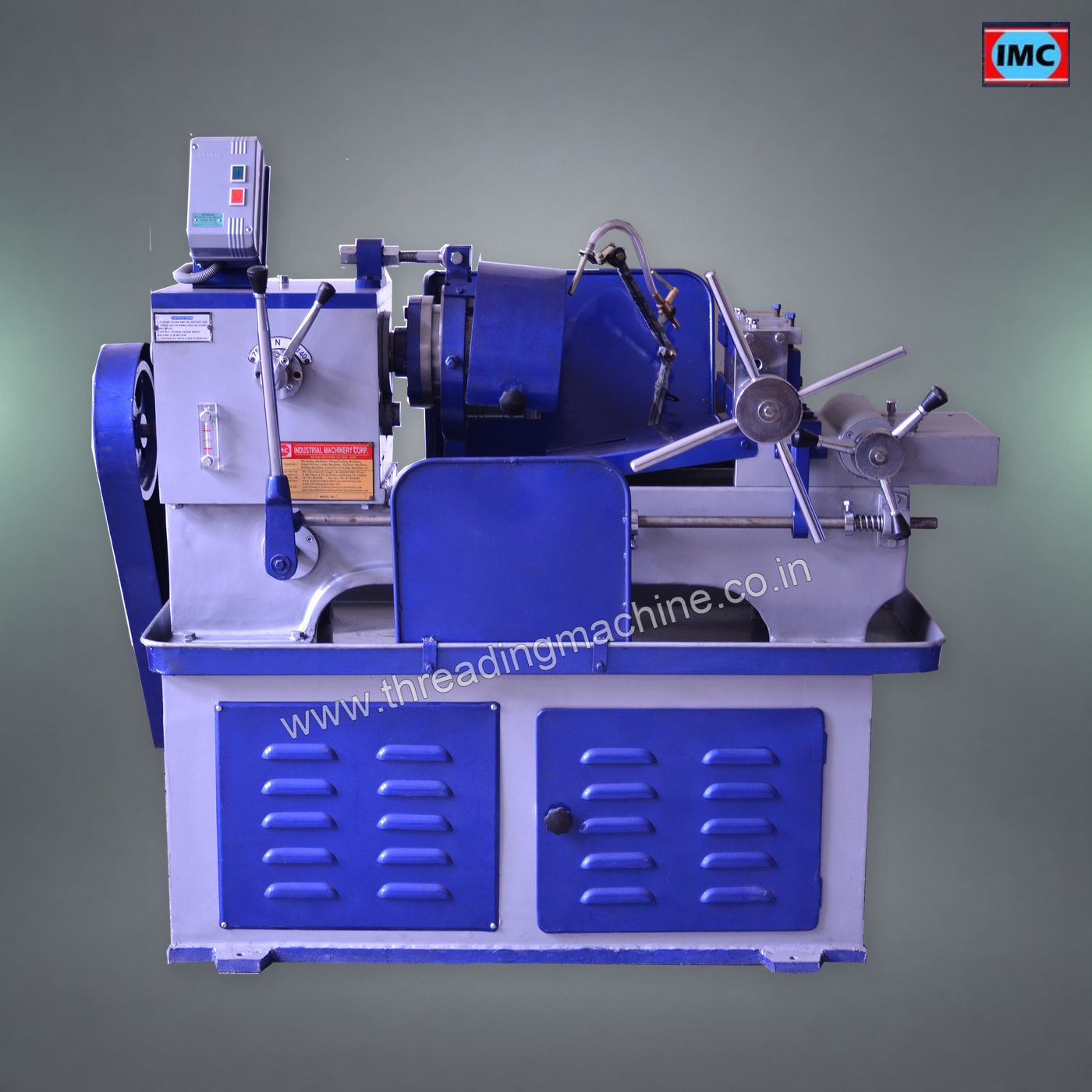

We offer well designed Scaffolding Pipe Threading Machine in India and abroad. The Scaffolding Pipe Threading Machine we offer is known for superb efficiency and low operational & maintenance cost. We are counted among the top Scaffolding Pipe Threading Machine Manufacturers, Suppliers, and Exporters. We offer Hydraulic Pipe Threading Machine at reasonable prices. The Scaffolding Pipe Threading Machine Consists of Base, Head Stock, Saddle, Bed or Pillar Type Clamping Vice, Die Head, Apron and Vice Jaws.

Use For Threading On Bolts , Pipes, Rebars , Bars, Rods

Suitable For

  • Metric
  • BSP
  • BSPT
  • NPT
  • UNF
  • UNC
  • BSW
  • Acme threads
  • B.S.F. threads
Range
  • 1/2" to 2.1/2" Capacity Pipe
  • 1" to 4" Capacity Pipe
  • 2.1/2" to 6" Capacity Pipe
  • 4" to 8" Capacity Pipe
About Components
  • Head Stock : A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.
  • The Bed : The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit.
  • The Saddle : The Saddle is fitted on two pillers very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.
  • The Apron : The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It’s all gears are made of best quality steel.
  • Vice Jaws : The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.
» Specifications
Model

1/2" to 2.1/2"

(12MM to 65MM)

(Pillar Type)

1" to 4"

(25MM to 100MM)

(Pillar Type)

2.1/2" to 6"

(65MM to 150MM)

(Pillar Type)

4" to 8"

(100MM to 200MM)

(Pillar Type)

Saddle Movement12" – 16"10" – 12"8"8"
Spindle Speed Range60-90-12040-75-11525-5025-50
Number of Spindle Speed3322
Threading Capacity1/2" to 2.1/2"1" to 4"2.1/2" to 6"4" to 8"
Production per Hour70-9035-4020-2515-20
H.P. Power Require (960 RPM)7.5 H.P.12.5 H.P.15 H.P.20 H.P.
Lead ScrewAutomaticAutomaticAutomaticAutomatic
Weight (KG) Approx.990160019002500

Frequently Asked Questions About Scaffolding Pipe Threading Machine

Those details define the application that the equipment must accommodate. No. Confirm the actual thread form and dimensions against the mating part. The holding and tooling should be reviewed for that tube.

Select the listed machine options, add the required quantity and attach your application notes. State tube wall and scaffold assembly drawing, together with the intended output and delivery location, so the quotation addresses your actual production task.

Scaffold tubes are prepared with cut threads for their intended mating components. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
