Automatic Bolt Thread Roller

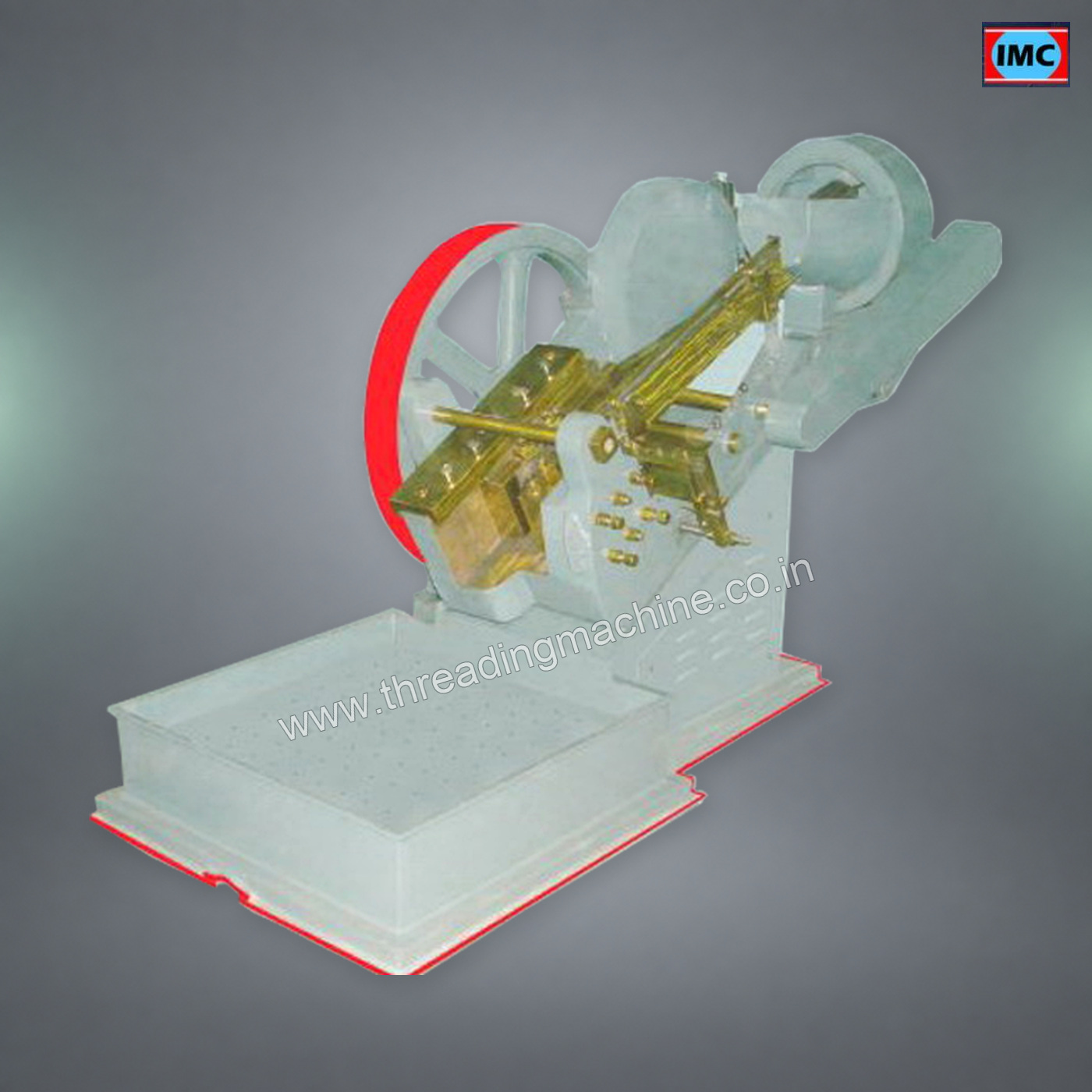

Bolt Thread Rolling Machine by Industrial Machinery Corporation

Bolt Thread Rolling Machine by Industrial Machinery Corporation thumbnail

Bolt Thread Rolling Machine by Industrial Machinery Corporation additional view 1

Review Automatic Bolt Thread Roller for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to form threads on suitable bolt blanks using an automatic flat-die rolling configuration against your component requirements. Send a drawing or sample and state fastener drawing, blank material and dimensions, thread profile and batch size. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address flat dies, the feeding configuration supplied and size-change arrangements. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Confirm which feeding and handling operations are included in the offered automatic configuration. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for thread fit, formed profile and handling of accepted and rejected components. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

Fastener drawing
Blank material and dimensions
Thread profile and batch size

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Model No You Are Interested

Expected Price

Mini Max Diameter of the job

Max Thread Length Require

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Flat Die Bolt Thread Rolling Machine

Available with us is this precisely designed Flat Die Bolt Thread Rolling Machine, which is reckoned for reliable performance and durable life. Designed for a flawless performance, our Flat Die Bolt Thread Rolling Machine is ideal for the production of large and small batches of all kinds of threads that can be cold-formed. Robust structure, easy operation and low maintenance are some of the words that best describe our Flat Die Thread Rolling Machine. Further, the clients can obtain the Flat Die Bolt Thread Rolling Machine in customized specifications, as per their requirements.

Specialty :

Easy to operate

Sturdy construction

Possesses advanced features

Ensures long-lasting performance

Specification

Model No.	FDTRM-1	FDTRM-2	FDTRM-3	FDTRM-4	FDTRM-5	FDTRM-6	FDTRM-7
Min. Max. Dia Can Be Rolled	1/16"x1/4"	1/8"x1/2"	1/8"x 1/2"	1/4"x5/8"	1/4"x3/4"	1/4"x7/8"	3/8"x1"
Max. Length of Thread	2"	2.1/2"	3"	3"	4"	4"	4"
Dimension of Fixed Dia	3"x2"x1"	5"x2.1/2"x1"	5"x3"x1"	6"x3"x1"	6"x4"x1"	7"x4"x1"	8"x4"x1.1/2"
Dimension of Moving Dia	4"x2"x1"	6"x2.1/2"x1"	6"x3"x1"	7"x3"x1"	7"x4"x1"	8"x4"x1"	9"x4"x1.1/2"
Production in Pieces Per Minute	80	60	60	50	30	30	20
Power Required in H.P.	2	3	5	7.5	10	15	20

Frequently Asked Questions About Bolt Thread Rolling Machine

Why discuss blank specification and feeding requirements before ordering bolt thread rolling machine?

Those details define the application that the equipment must accommodate. Confirm the loading, feeding and discharge sequence in the quotation. Tool changes and setup requirements should also be explained for the intended sizes.

How do I build an enquiry for the bolt thread rolling machine shown here?

Select the listed machine options, add the required quantity and attach your application notes. State blank specification and feeding requirements, together with the intended output and delivery location, so the quotation addresses your actual production task.

What does the bolt thread rolling machine do within a production setup?

Cold rolling forms fastener threads on prepared blanks using compatible dies and feeding. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
